    400GBASE-2xSR4 OSFP 850nm 100m MMF Module for Cisco

    Click to open expanded view

    400GBASE-2xSR4 OSFP 850nm 100m MMF Module for Cisco
    400GBASE-2xSR4 OSFP 850nm 100m MMF Module for Cisco
    400GBASE-2xSR4 OSFP 850nm 100m MMF Module for Cisco
    400GBASE-2xSR4 OSFP 850nm 100m MMF Module for Cisco
    400GBASE-2xSR4 OSFP 850nm 100m MMF Module for Cisco
    400GBASE-2xSR4 OSFP 850nm 100m MMF Module for Cisco
    Global Local Service
    Lifetime Technical Support

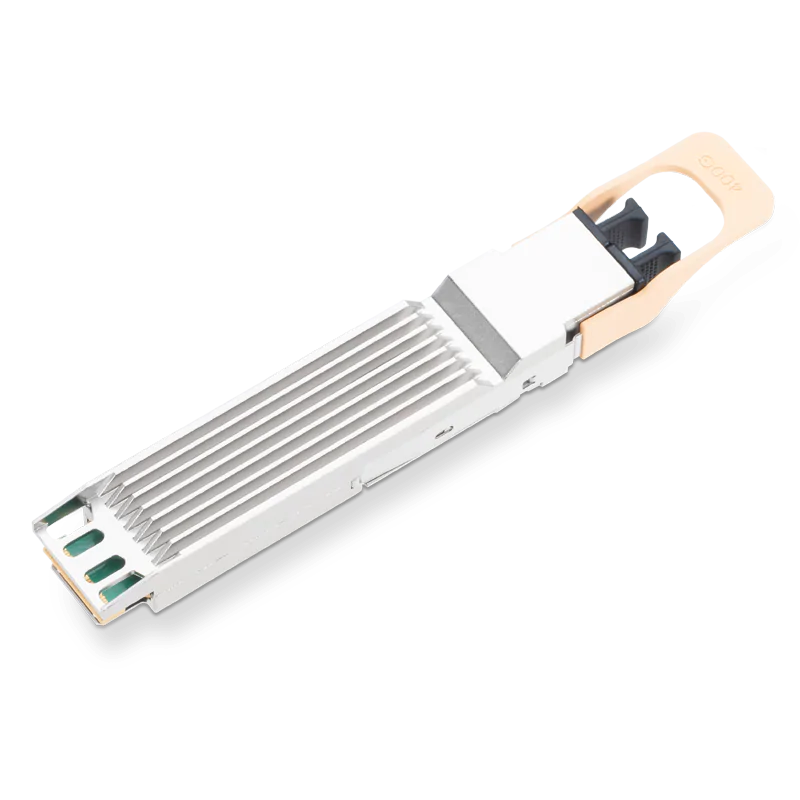

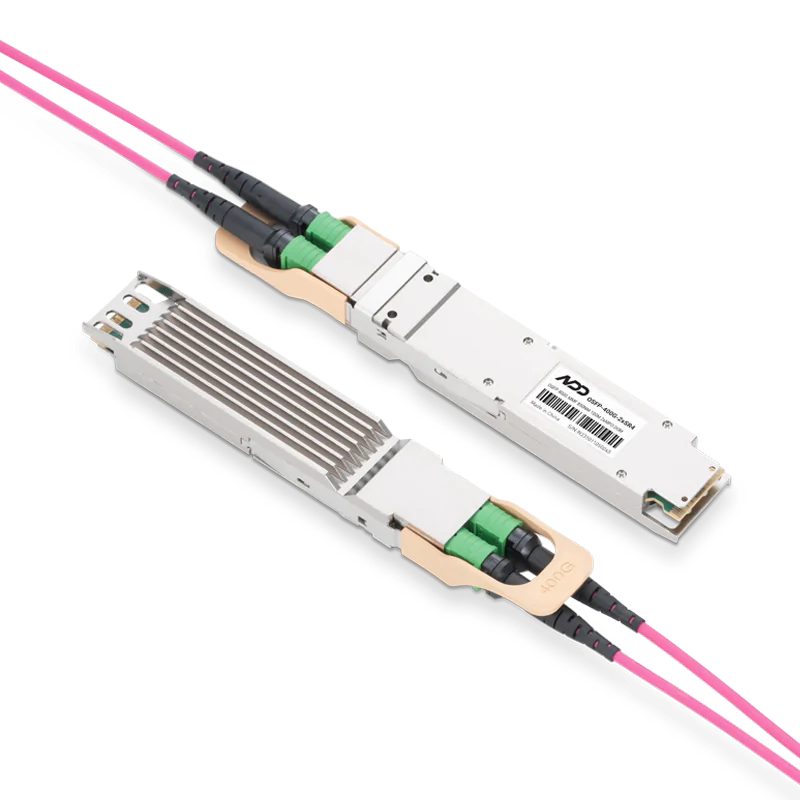

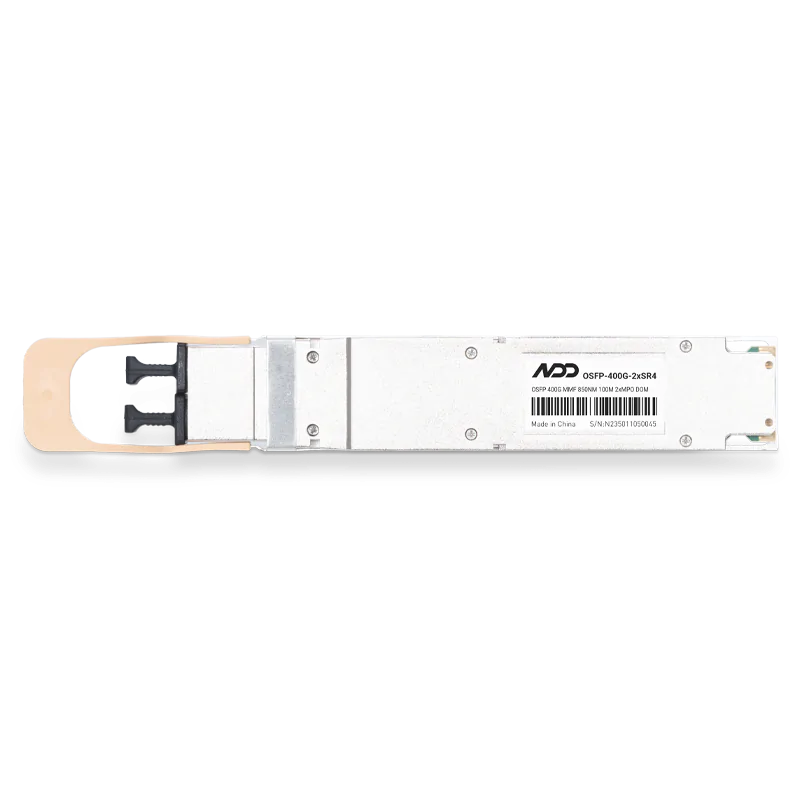

    Cisco Compatible OSFP-400G-2xSR4 850nm 100m Dual MTP/MPO-12 APC MMF Finned Top Optical Transceiver Module

    #102617
    Model: OSFP-400G-2xSR4
    Sold: 3.3K+
    In Stock: 13
    $ 639.00
    Types:
    InfiniBand
    RoCE (Ethernet)
    InfiniBand
    RoCE (Ethernet)
    Transceiver Types:
    Q56-200G-SR4
    Q56-200G-FR4
    OSFP-400G-2xSR4
    Q56-200G-SR4
    Q56-200G-FR4
    OSFP-400G-2xSR4
    Brand:
    Cisco
    Arista
    Juniper
    Generic
    NVIDIA/Mellanox (Ethernet)
    Cisco
    Arista
    Juniper
    Generic
    NVIDIA/Mellanox (Ethernet)
    Shipping:Choose Your Country To Known Postage
    Quantity:
    Total Price:$ 639.00

    Add to Cart

    Continue Shopping
    Subtotal:
    $0
    Continue Shopping

    Choose your location

    CarrierDelivery TimeCost

    Product Sample Request

    Already have an account? Sign in or Create an account

    Please fill in the product ID or upload the product list

    NADDOD
    Confirm

    Contact Information

    +1
    upload file
    I agree to NADDOD's Privacy Policy and Term of Use.
    Submit

    Sample Application Agreement:

    The sample is solely offered for tryout, and it is not free. Samples follow the purchase process. Some of your special requests, such as prepaid purchases or free samples need to be approved by contacting your sales representative for application.

    After testing, you will need to either return it back to get your deposit refund, or make payment for it and keep it.

    For the sample orders, if it met with the Free Shipping policy, then shipping and delivery cost would be covered by NADDOD. But if it is not, then the shipping and delivery cost and additional charges in transit (e.g. tariff for customs clearance if any) should be borne by buyer.

    The sample orders are compliance with our warranty policy stated on our product Support-Warranty page.

    The test period is 30 days from the receipt of goods. After 30 days, you can decide to pay for the product and keep it if you are satisfied, or return it back if it is not suitable. Overdue payment will be charged if the test sample is not returned timely after the test period finishes.

    We will conduct a comprehensive inspection upon receiving the returned goods. If the sample is found damaged, compensation is necessary, and the amount varies from the product's value and test results.

    Product Sample Request

    Already have an account? Sign in or Create an account

    Please fill in the product ID or upload the product list

    NADDOD
    Confirm

    Contact Information

    +1
    upload file
    I agree to NADDOD's Privacy Policy and Term of Use.
    Submit

    Sample Application Agreement:

    The sample is solely offered for tryout, and it is not free. Samples follow the purchase process. Some of your special requests, such as prepaid purchases or free samples need to be approved by contacting your sales representative for application.

    After testing, you will need to either return it back to get your deposit refund, or make payment for it and keep it.

    For the sample orders, if it met with the Free Shipping policy, then shipping and delivery cost would be covered by NADDOD. But if it is not, then the shipping and delivery cost and additional charges in transit (e.g. tariff for customs clearance if any) should be borne by buyer.

    The sample orders are compliance with our warranty policy stated on our product Support-Warranty page.

    The test period is 30 days from the receipt of goods. After 30 days, you can decide to pay for the product and keep it if you are satisfied, or return it back if it is not suitable. Overdue payment will be charged if the test sample is not returned timely after the test period finishes.

    We will conduct a comprehensive inspection upon receiving the returned goods. If the sample is found damaged, compensation is necessary, and the amount varies from the product's value and test results.

    Item Spotlights

    • Max Power Consumption ≤14W.
    • Provide Professional Compatibility and Parameter Test Reports.
    • Compliant with Hot Pluggable OSFP MSA, IEEE 802.3cm, CMIS 5.2 Standard.
    • Class1/1M Standard Product, Compliant with RoHS Environmental Protection Standards (Lead-Free).
    • DDM(Digital Diagnostic Monitoring) Supported.
    • Significantly Improve the Flexibility, Economy and Reliability of Networking.
    • 30-Day Free Return, 1-Year Free Replacement, 3-Year Warranty, Lifetime After-sales Technical Support.
    400GBASE-2xSR4 OSFP 850nm 100m MMF Module for Cisco
    Cisco Compatible OSFP-400G-2xSR4 850nm 100m Dual MTP/MPO-12 APC MMF Finned Top Optical Transceiver Module
    NADDOD

    $ 639.00

    Add to Cart

    Continue Shopping
    Subtotal:
    $0
    Continue Shopping
    Specifications
    Applications
    Product Highlights
    Questions & Answers
    Resources
    Specifications
    Applications
    Product Highlights
    Questions & Answers
    Resources
    Description

    Cisco Compatible 400GBASE-2xSR4 PAM4 850nm 100m Dual MTP/MPO-12 APC MMF Finned Top Optical Transceiver Module

    NADDOD OSFP-400G-2xSR4 is an Eight Channel, Parallel, Pluggable, Fiber-Optic OSFP for 400Gigabit Ethernet applications. This transceiver is a high performance module for short- range data communication and interconnect application. It integrates eight data lanes in each direction with 8x26.5625GBd. The length of OSFP 2xSR4 is up to 100 meters over OM4 MMF.

    Specifications
    Form Factor
    OSFP
    Distance
    70m (OM3) /100m (OM4)
    Wavelength
    850nm
    Connector
    Dual MTP/MPO-12 APC
    Power Consumption
    ≤14W
    Transmitter
    VCSEL
    Receiver
    PIN
    Media
    MMF
    Modulation（electrical）
    8x50Gb/s PAM4
    Modulation（Optical）
    8x50Gb/s PAM4
    Case Temperature(℃)
    0~70°C(32 to 158°F)
    Protocol
    400G Ethernet Compliant
    Applications
    800G Switch to 200G Switch
    800G Switch to 200G NIC

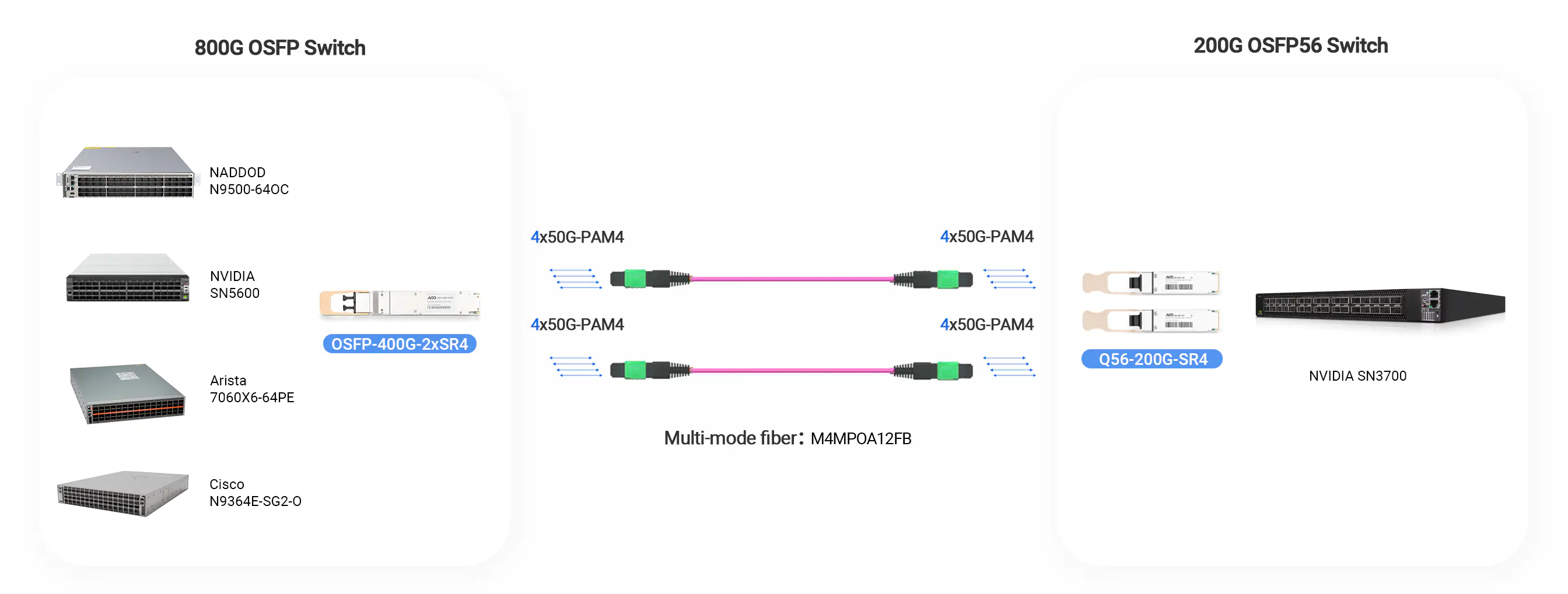

    400G OSFP 2×SR4 is connected with 200G QSFP56 switch(NADDOD SN3700).
    NVIDIA/Mellanox MFP7E10-N020 Compatible 20m (66ft) MPO-12 APC (Female) to MPO-12 APC (Female) Erika Violet/Magenta OM4 12 Fibers Type B LSZH Multimode Elite Trunk Cable 3mm
    NVIDIA/Mellanox MFP7E10-N020 Compatible 20m (66ft) MPO-12 APC (Female) to MPO-12 APC (Female) Erika Violet/Magenta OM4 12 Fibers Type B LSZH Multimode Elite Trunk Cable 3mm
    $ 55.00
    Arista QSFP-200G-SR4 Compatible 200GbE SR4 QSFP56 PAM4 850nm 100m MPO/MTP-12 UPC Optical Transceiver Module for MMF
    Arista QSFP-200G-SR4 Compatible 200GbE SR4 QSFP56 PAM4 850nm 100m MPO/MTP-12 UPC Optical Transceiver Module for MMF
    $ 149.00
    N9500-64OC, 64x800G OSFP Ethernet L3 2U Managed Switch, 51.2Tbps, Preloaded with SONiC-based NOS, Broadcom Tomahawk 5, Support RoCEv2, for AI/ML/Cloud Data Center/HPC
    N9500-64OC, 64x800G OSFP Ethernet L3 2U Managed Switch, 51.2Tbps, Preloaded with SONiC-based NOS, Broadcom Tomahawk 5, Support RoCEv2, for AI/ML/Cloud Data Center/HPC
    $ 26999.00
    NVIDIA SN5600（920-9N42F-00RI-7C0） Spectrum-4 based 800GbE 2U Open Ethernet switch with Cumulus Linux Authentication, 64 OSFP ports and 1 SFP28 port, 2 power supplies (AC), x86 CPU, Secure-boot, standard depth, C2P airflow, Tool-less Rail Kit, with 1-year Service
    NVIDIA SN5600（920-9N42F-00RI-7C0） Spectrum-4 based 800GbE 2U Open Ethernet switch with Cumulus Linux Authentication, 64 OSFP ports and 1 SFP28 port, 2 power supplies (AC), x86 CPU, Secure-boot, standard depth, C2P airflow, Tool-less Rail Kit, with 1-year Service
    $ 55250.00

    Add to Cart

    Continue Shopping
    Subtotal:
    $0
    Continue Shopping

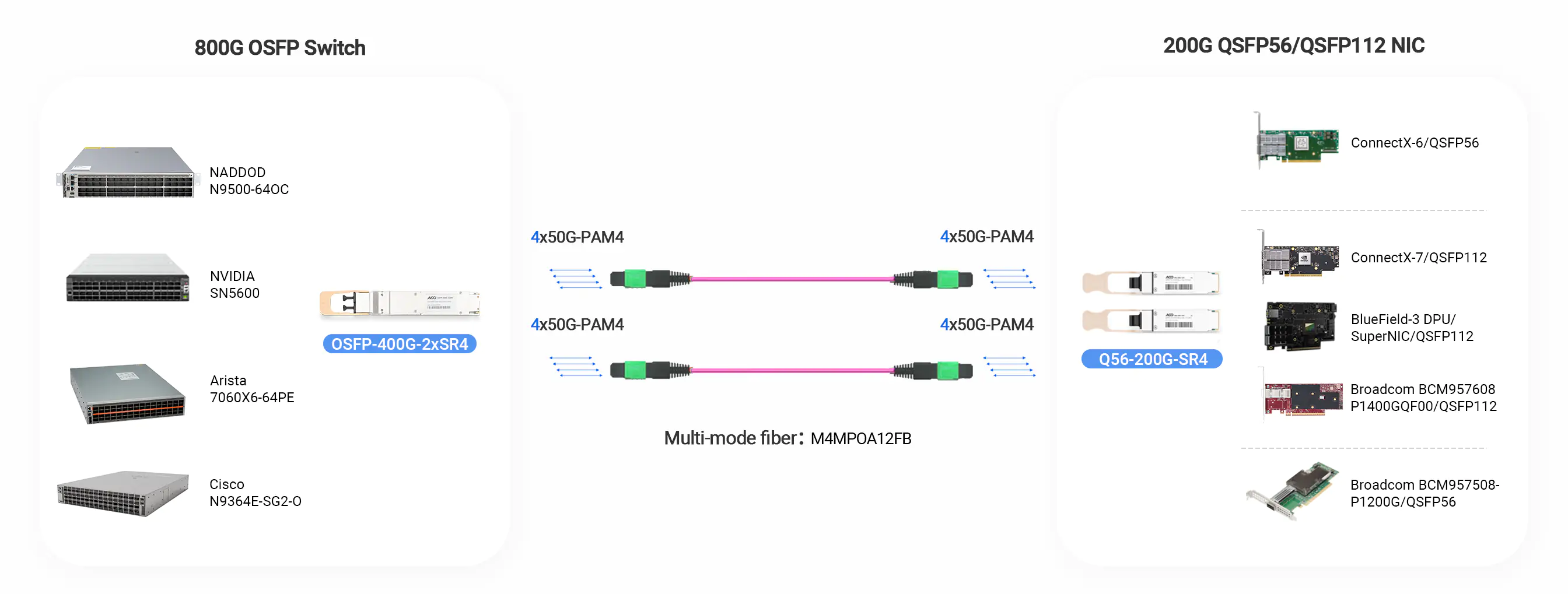

    400G OSFP 2×SR4 is connected with 200G QSFP56/QSFP112 NICs(ConnectX-6, ConnectX-7, BlueField-3 DPU Super NIC) and Broadcom(BCM957608P1400GDF00, BCM957508-P1200G).
    NVIDIA SN5600（920-9N42F-00RI-7C0） Spectrum-4 based 800GbE 2U Open Ethernet switch with Cumulus Linux Authentication, 64 OSFP ports and 1 SFP28 port, 2 power supplies (AC), x86 CPU, Secure-boot, standard depth, C2P airflow, Tool-less Rail Kit, with 1-year Service
    NVIDIA SN5600（920-9N42F-00RI-7C0） Spectrum-4 based 800GbE 2U Open Ethernet switch with Cumulus Linux Authentication, 64 OSFP ports and 1 SFP28 port, 2 power supplies (AC), x86 CPU, Secure-boot, standard depth, C2P airflow, Tool-less Rail Kit, with 1-year Service
    $ 55250.00
    N9500-64OC, 64x800G OSFP Ethernet L3 2U Managed Switch, 51.2Tbps, Preloaded with SONiC-based NOS, Broadcom Tomahawk 5, Support RoCEv2, for AI/ML/Cloud Data Center/HPC
    N9500-64OC, 64x800G OSFP Ethernet L3 2U Managed Switch, 51.2Tbps, Preloaded with SONiC-based NOS, Broadcom Tomahawk 5, Support RoCEv2, for AI/ML/Cloud Data Center/HPC
    $ 26999.00
    NVIDIA/Mellanox MFP7E10-N020 Compatible 20m (66ft) MPO-12 APC (Female) to MPO-12 APC (Female) Erika Violet/Magenta OM4 12 Fibers Type B LSZH Multimode Elite Trunk Cable 3mm
    NVIDIA/Mellanox MFP7E10-N020 Compatible 20m (66ft) MPO-12 APC (Female) to MPO-12 APC (Female) Erika Violet/Magenta OM4 12 Fibers Type B LSZH Multimode Elite Trunk Cable 3mm
    $ 55.00
    Arista QSFP-200G-SR4 Compatible 200GbE SR4 QSFP56 PAM4 850nm 100m MPO/MTP-12 UPC Optical Transceiver Module for MMF
    Arista QSFP-200G-SR4 Compatible 200GbE SR4 QSFP56 PAM4 850nm 100m MPO/MTP-12 UPC Optical Transceiver Module for MMF
    $ 149.00
    MCX653105A-HDAT, MCX653106A-HDAT, MCX654106A-HCAT, MCX653105A-HDAL, MCX653106A-HDAL, MCX683105AN-HDAT
    MCX755106AS-HEAT, MCX755106AC-HEAT
    B3240, B3220, B3220L, B3140L, B3140H

    Add to Cart

    Continue Shopping
    Subtotal:
    $0
    Continue Shopping
    Product Highlights
    100% Compatibility Validated in Arista/NVIDIA/Cisco/Broadcom RoCE Networking

    NADDOD modules, AOCs, and DACs are professionally tested and fully compatible with the latest mainstream devices of Arista 7060X6 series data center switches, NVIDIA Spectrum-4 SN5000 series, Cisco Nexus 9300-GX2 series and Broadcom NIC BCM957608 series, which guarantees unmatched interoperability, high reliability and seamless operation in complex RoCE applications.

    NVIDIA/Mellanox (Ethernet)
    Arista
    Juniper
    Cisco
    Dell
    Broadcom
    HUAWEI
    H3C
    Request Test Reports
    • 920-9N42C-00RB-7C0
    • 920-9N42F-00RI-7C0
    • MSN4700-WS2FC
    • MSN4700-WS2RC
    • MSN4600-VS2FC
    • MSN4600-VS2RC
    • MSN4600-CS2FC
    • MSN4600-CS2RC
    • MSN4280-WS2RXOS
    • MSN3700-VS2FC
    • MSN3700-VS2RC
    • MSN3700-CS2FC
    • MSN3700-CS2RC
    • MSN3750-VS2FSC
    • MSN3750-VS2RSC
    • MSN3420-CB2FC
    • MSN3420-CB2RC
    • MCX75310AAS-NEAT
    • MCX75310AAC-NEAT
    • MCX75510AAS-NEAT
    • MCX75310AAS-HEAT
    • MCX75510AAS-HEAT
    • MCX715105AS-WEAT
    • MCX755106AS-HEAT
    • View More
    NADDOD Product Ensures Low BER, High Reliability in Complex RoCE Interconnection

    In the RS-FEC(544,514) test, NADDOD products achieve pre-FEC BER of -9~-11, and near-zero post-FEC BER, which can meet the strict requirements for high performance and stable networking connection.

    NADDOD
    Questions & Answers
    Ask a Question

    Ask Questions

    Your question was submitted. NADDOD support team will reply to you ASAP.
    Q:
    What is the application scenario for the OSFP-400G-2×SR4 module?
    A:
    This module is primarily used on OSFP switch ports, such as the N9500-64OC or NVIDIA SN5600. It connects to 200G QSFP56 NICs on the other end via 12-core multimode MPO patch cables (e.g., M4MPOA12FB), enabling interconnection between an 800G OSFP switch and 200G NICs.
    Q:
    Can this module interoperate with 400G SR4 modules?
    A:
    No, it cannot. This module has dual ports with 8×50G PAM4. Common 400G SR4 optical modules, such as OSFP-400G-SR4, Q112-400G-SR4, and QDD-400G-SR4, are all single-port modules with 4×100G PAM4. The per-channel modulation rates do not match, so they are not interoperable.
    Q:
    Can this module be used with a CX7 OSFP 400G NICs?
    A:
    No, it cannot. This module uses a finned top design, intended for switch-side deployment. For NIC-side use, flat top optical modules are recommended, such as OSFP-400G-SR8 or OSFP-400G-SR4.
    Resources
    OSFP-400G-2xSR4 Datasheet
