NVIDIA/Mellanox Compatible 400G OSFP 2×SR4 850nm 50m Dual MTP/MPO-12 APC MMF InfiniBand HDR Finned Top Optical Transceiver Module

#102623
Model: OSFP-400G-2xSR4H
Sold: 2.6K+
In Stock: 13
$ 1149.00
Types:
Brand:
NADDOD (InfiniBand)
NADDOD (InfiniBand)
Shipping:Choose Your Country To Known Postage
Quantity:
Total Price:$ 1149.00

Item Spotlights

  • 100% verified by the original, perfectly compatible with NVIDIA QM9700/9790 devices.
  • Tested for compatibility with multiple firmware versions, compliant with IBTA Industrial BER standards.
  • Complies with OSFP MSA, CMIS 4.0, and RoHS protocols, providing a reliable and sustainable solution.
  • 30-Day Free Return, 1-Year Free Replacement, 3-Year Warranty, Lifetime After-sales Technical Support.
400GBASE-2xSR4 OSFP 850nm 50m MMF InfiniBand HDR Module for Mellanox
NVIDIA/Mellanox Compatible 400G OSFP 2×SR4 850nm 50m Dual MTP/MPO-12 APC MMF InfiniBand HDR Finned Top Optical Transceiver Module

$ 1149.00

Specifications
Applications
Questions & Answers
Resources
Specifications
Applications
Questions & Answers
Resources
Description

NVIDIA/Mellanox Compatible 400GBASE-2xSR4 PAM4 850nm 50m Dual MTP/MPO-12 APC MMF Finned Top Optical Transceiver Module

NADDOD OSFP-400G-2xSR4 is an Eight Channel, Parallel, Pluggable, Fiber-Optic OSFP for 400Gigabit Ethernet applications. This InfiniBand HDR transceiver is a high performance module for short- range data communication and interconnect application. It integrates eight data lanes in each direction with 8x26.5625GBd. The length of OSFP 2xSR4 is up to 50 meters over OM4 MMF.

Specifications
Form Factor
OSFP
Distance
30m (OM3) /50m (OM4)
Wavelength
850nm

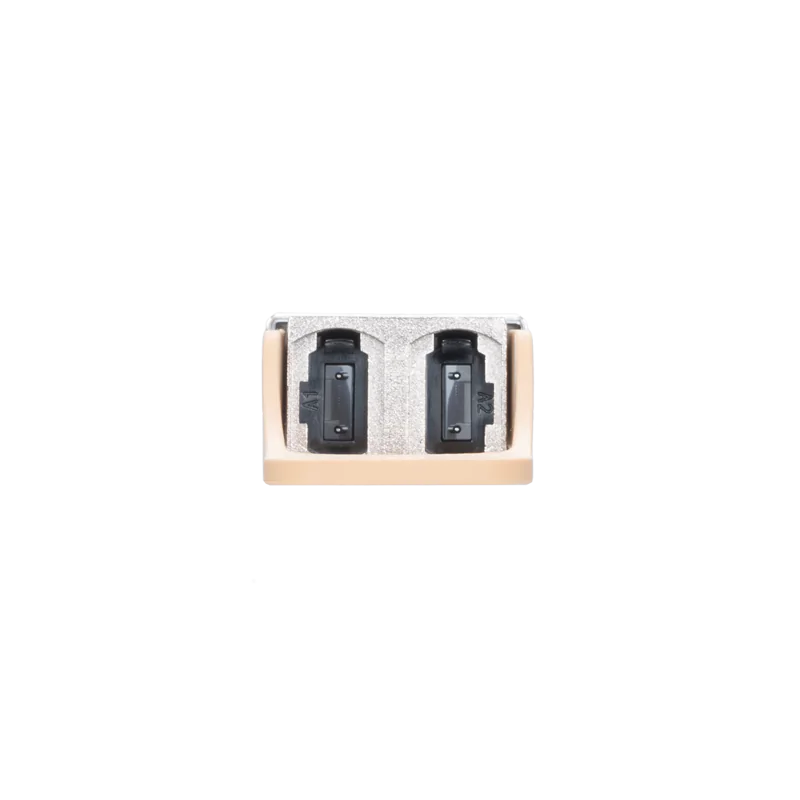

Connector
Dual MTP/MPO-12 APC
Power Consumption
≤14W
Transmitter
VCSEL
Receiver
PIN
Media
MMF
Modulation(electrical)
8x50Gb/s PAM4
Modulation(Optical)
8x50Gb/s PAM4
Case Temperature(℃)
0~70°C(32 to 158°F)
Protocol
IB HDR ,400G Ethernet Compliant
Applications

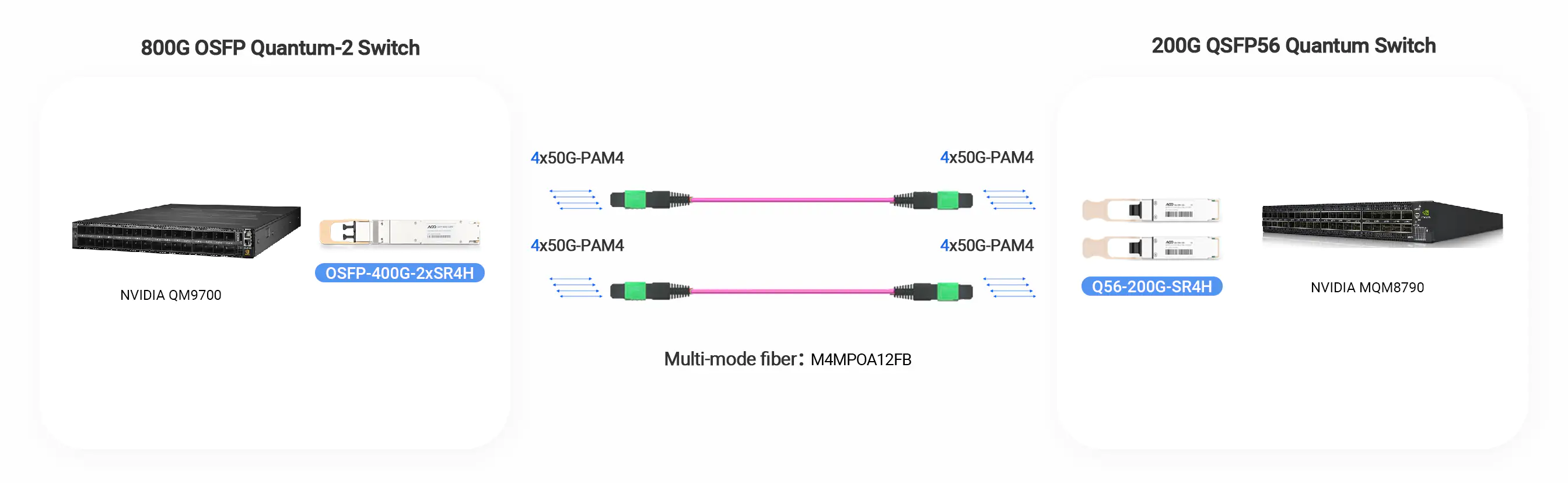

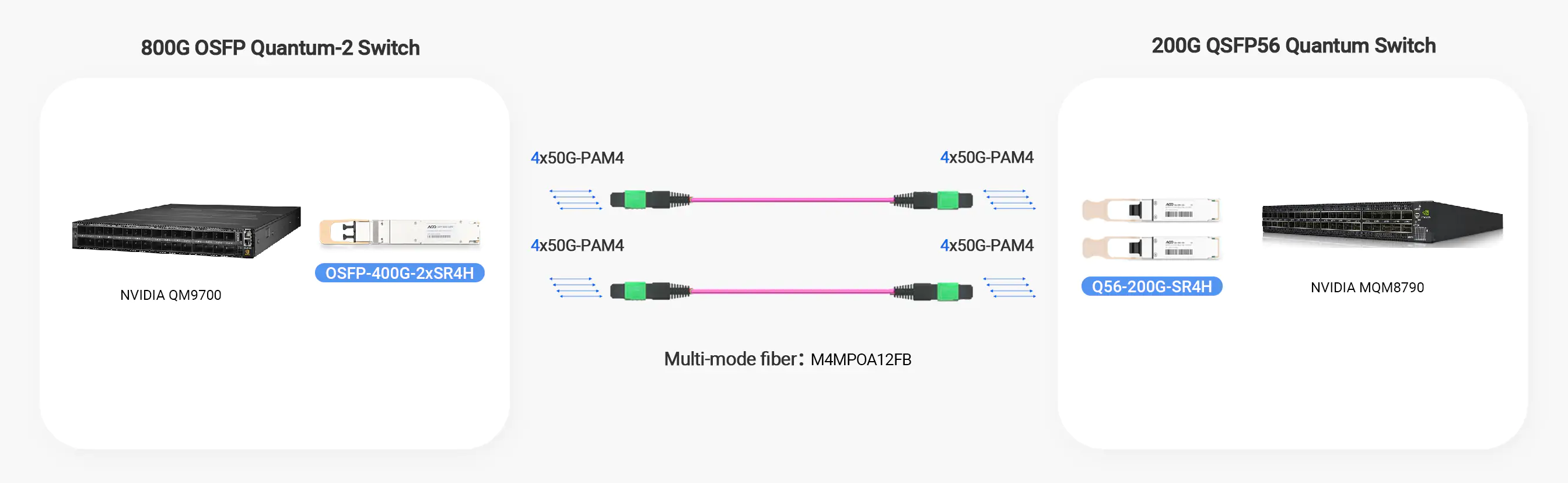

800G Switch to 200G Switch

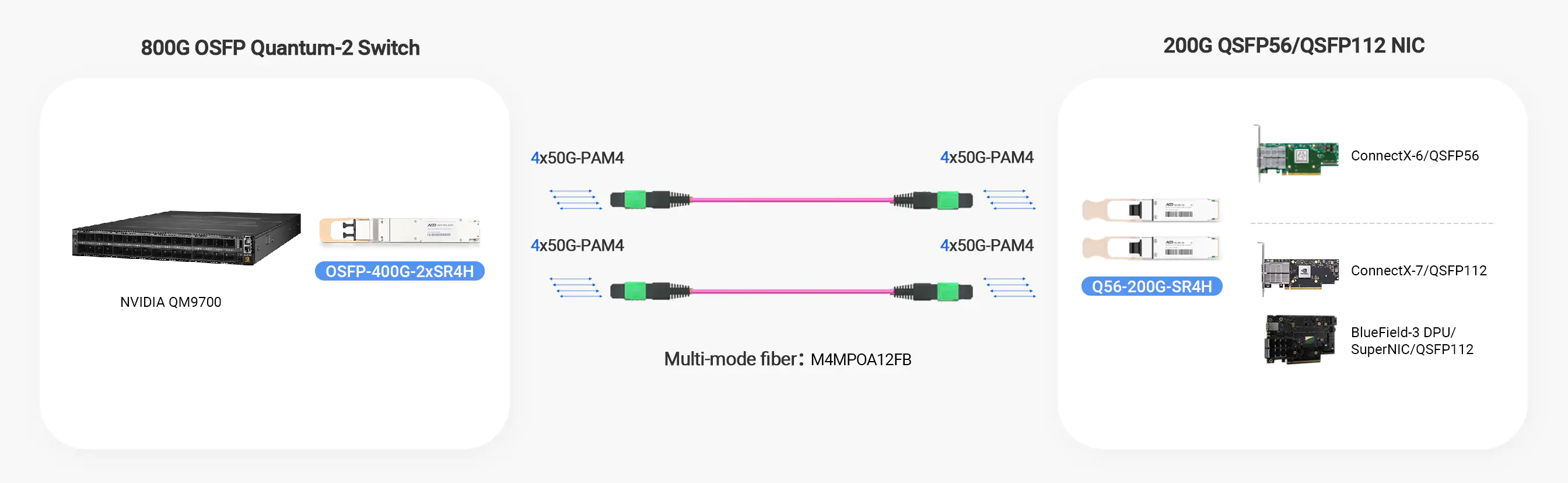

800G Switch to 200G NIC
Questions & Answers
Ask a Question
Q:
What are the application scenarios for the OSFP-400G-2xSR4H module?
A:
This module is mainly used for OSFP port switches, such as the QM9700/9790 series switches, connecting to a 200G QSFP56 NICs on the other end using a 12-core multimode MPO jumper M4MPOA12FB, facilitating interconnection between NDR switches and HDR network cards.
Q:
Can this module be interconnected with a 400G SR4 module?
A:
No, it cannot. This module is dual-port, 8x50G PAM4. Common 400G SR4 optical modules like OSFP-400G-SR4, Q112-400G-SR4, and QDD-400G-SR4 are single-port, 4x100G PAM4. The mismatch in channel modulation rates prevents interconnection.
Q:
Can this module be used with the CX7 OSFP 400G NIC?
A:
No, it cannot. This module features a finned top form factor designed for switch-side applications. For NICs applications, flat-top modules such as OSFP-400G-SR8 or OSFP-400G-SR4 can be selected.
