We have some 800G OSFP port switches connected with original cables, will there be any incompatibility issues if we use them with your cables?

NADDOD cables comply with international standards and have good interoperability ,compatibility. It can be used with original cables.

What is the difference between O2Q112-800G-ACC and O2Q112-800G-DAC?

O2Q112-800G-DAC is a passive copper cable. The connector of the passive copper cable does not contain active components and can provide a direct electrical connection between the corresponding cable ends. The longest transmission distance is 3m. O2Q112-800G-ACC is a passive copper cable with integrated equalizer circuit. It can extend the length up to 4 meters and 5 meters while maintaining low latency and low power consumption of 1.5W and 0.6W respectively.

What are the main application scenarios of O2Q112-800G-DAC cable?

It is mainly used for switches with OSFP ports. And branch ends connected to network cards with 400G QSFP112 ports.

Can the O2Q112-800G-ACC cable be used for 400G network cards with OSFP ports?

No, QSFP112 and OSFP are two different form-factors with inconsistent sizes, and they cannot be used together.

4m (13ft) Twin-port 2x400Gb/s OSFP to 2x400Gb/s QSFP112 Active Copper Splitter Cable for Cisco

Click to open expanded view

Global Local Service

Lifetime Technical Support

Cisco Compatible ACC 4m (13ft) Twin-port 2x400Gb/s OSFP Finned Top to 2x400Gb/s QSFP112 Flat Top Active Copper Splitter Cable

Name: Cisco Compatible ACC 4m (13ft) Twin-port 2x400Gb/s OSFP Finned Top to 2x400Gb/s QSFP112 Flat Top Active Copper Splitter Cable
Brand: Naddod
SKU: 102122
Price: 913.00 USD
Availability: OnlineOnly
Rating: 5.0 (18 reviews)

#102122

Model: O2Q112-800G-AC4

Sold: 0

In Stock: Available

$ 913.00

Brand:

NVIDIA/Mellanox (Ethernet)

Cisco

Arista

NVIDIA/Mellanox (Ethernet)

Cisco

Arista

Length:

4m (13ft)

5m (16ft)

4m (13ft)

5m (16ft)

Item Spotlights

Low-latency, Low-power, Higher port bandwidth, density and configurability, reduced power requirement in the data centers.
Provide Professional Compatibility and Parameter Test Reports.
Free test environment and samples are available to experience the high-quality product performance.
Complies with OSFP/QSFP112 MSA, CMIS, and RoHS protocols, providing a reliable and sustainable solution.
30-Day Free Return, 1-Year Free Replacement, 3-Year Warranty, Lifetime After-sales Technical Support.

Cisco Compatible ACC 4m (13ft) Twin-port 2x400Gb/s OSFP Finned Top to 2x400Gb/s QSFP112 Flat Top Active Copper Splitter Cable

Free Worldwide Shipping on Orders over $ 99

Specifications

Applications

Product Highlights

Questions & Answers

Customer Reviews

Resources

Specifications

Applications

Product Highlights

Questions & Answers

Customer Reviews

Resources

Description

Cisco Compatible 4m (13ft) 800G Twin-port OSFP Finned Top to 2x400Gb/s QSFP112 Flat Top Breakout Active Copper Cable

NADDOD O2Q112-800G-AC4 is an 800Gb/s Twin-port OSFP (Octal Small Form-factor Pluggable) Finned Top to 2x 400Gb/s QSFP112 (Quad Small Form-factor Pluggable 112G) Flat Top Active Copper Copper (ACC) dual breakout (aka splitter) cable for Ethernet networking. The switch end OSFP has a finned top for additional cooling and the QSFP112 adapter end is flat topped and uses riding heat sinks on the OSFP cage. The ACC contains eight high-speed electrical copper pairs, each operating at data rates of up to 100Gb/s using 100G-PAM4 modulation. The “active” term refers to the passive copper cable with an equalizer integrated circuit to extend the length to 4 and 5-meters.

Specifications

Form Factor

OSFP to 2xQSFP112

Cable Length

4m~5m

Wire AWG

26AWG~30AWG

Commercial Temperature Range

0~70°C(32 to 158°F)

Jacket Material

PVC

Power Consumption

<1.5W(OSFP end), <0.6W(QSFP112 end)

Minimum Bend Radius

10x OD

Application

800G/400G Ethernet Compliant

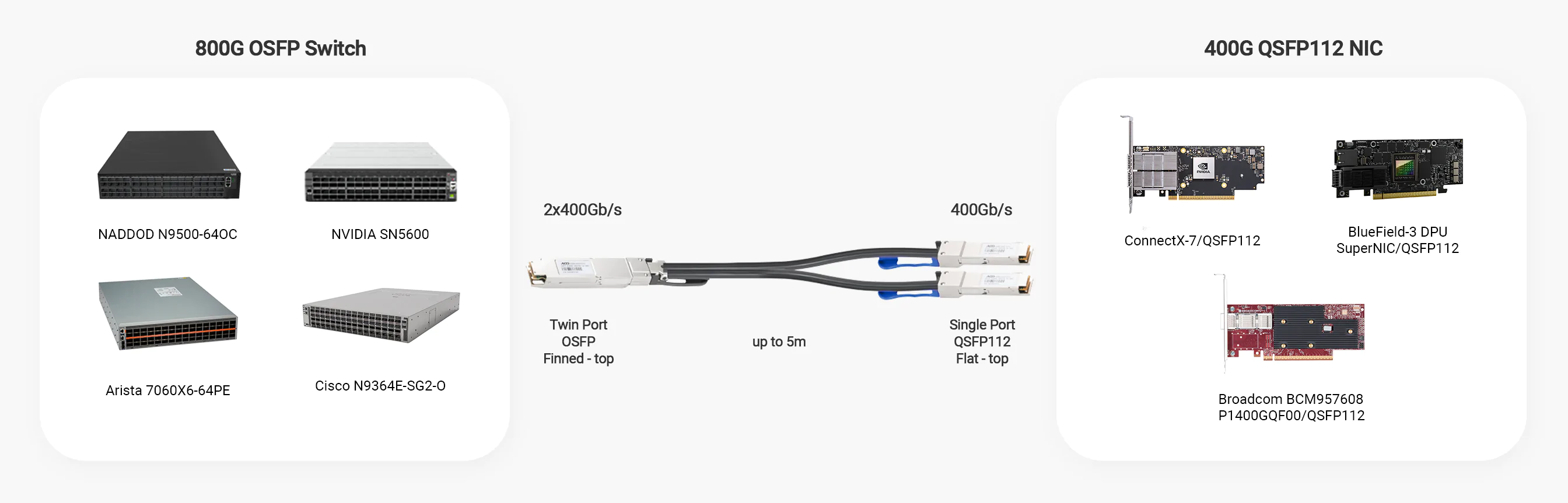

Applications

Product Highlights

Finned Top and Flat Top Unlock Optimal Application Scenarios

800G Breakout DAC integrates different heat sink designs of the two-end transceivers, unleashing powerful performance.

The 800G OSFP end transceiver adopts a finned top to provide the necessary thermal management when handling massive data, which is applied for Spectrum-4 Ethernet switches.

Each module on the two or four 400G OSFP breakout side has a flat-top design used in CX7 NICs and relies on heatsinks on the NIC ports to assist the module in cooling.

Questions & Answers

Ask a Question

If I only use the first branch of a 1-to-2 cable and leave the second branch uninstalled on the network card, will it affect the usage of the first branch?

No, it won't affect. After port configuration and splitting, internally in the device, it is recognized as two separate logical ports. Each branch of the cable corresponds to a logical port, and they do not affect each other.

Why are there no 800G AOCs?

OSFP is very large and heavy, and the fiber can break easily. A two-branch cable will have 3 large transceiver ends, and a four-branch cable will have 5 transceivers. This will almost certainly easily lead to fiber breakage during installation - especially for a 30m long AOC.

What is the transmission distance of the O2Q112-800G-ACC cable?

Active DAC can provide 4M and 5M.

Customer Reviews

4.5

1 Reviews

5 Star
0%
4 Star
0%
3 Star
0%
2 Star
0%
1 Star
0%

All Reviews (1)

g***r
Verified Purchase
g***r
Verified Purchase
4.5
This product seems to be a new release, and NADDOD has provided very professional testing materials. It happens to match our equipment, which has been tremendously helpful to us.
