20m (66ft) MPO-12 APC (Female) to MPO-12 APC (Female) Yellow Single Mode Elite Trunk Cable for Mellanox

Click to open expanded view

20m (66ft) MPO-12 APC (Female) to MPO-12 APC (Female) Yellow Single Mode Elite Trunk Cable for Mellanox
20m (66ft) MPO-12 APC (Female) to MPO-12 APC (Female) Yellow Single Mode Elite Trunk Cable for Mellanox
20m (66ft) MPO-12 APC (Female) to MPO-12 APC (Female) Yellow Single Mode Elite Trunk Cable for Mellanox
Global Local Service
Lifetime Technical Support

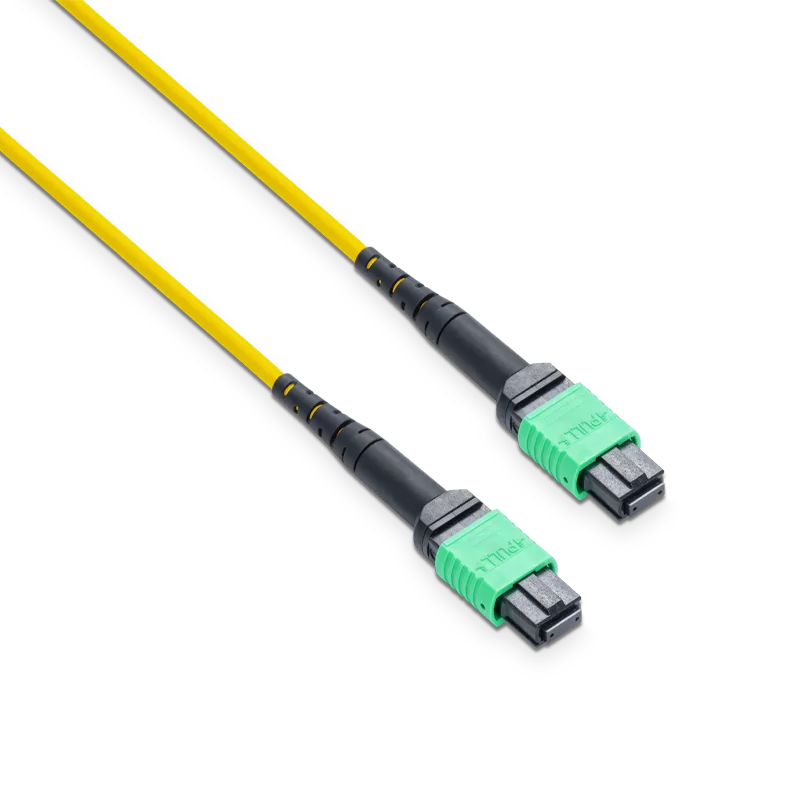

NVIDIA/Mellanox MFP7E30-N020 Compatible 20m (66ft) MPO-12 (Female) to MPO-12 (Female) Yellow OS2 12 Fibers Type B, LSZH Single Mode Elite Trunk Cable 3mm

#34571
Model: S2MPOA12FB | SKU: 980-9I58F-00N020
Sold: 0
In Stock: Available
$ 101.40
Length:
0.5m (1.6ft)
1m (3ft)
1.5m (5ft)
2m (7ft)
3m (10ft)
4m (13ft)
5m (16ft)
7m (23ft)
8m (26ft)
10m (33ft)
15m (49ft)
20m (66ft)
25m (82ft)
30m (98ft)
0.5m (1.6ft)
1m (3ft)
1.5m (5ft)
2m (7ft)
3m (10ft)
4m (13ft)
5m (16ft)
7m (23ft)
8m (26ft)
10m (33ft)
15m (49ft)
20m (66ft)
25m (82ft)
30m (98ft)

Item Spotlights

  • Optimal 0.15dB Typ. IL with MPO Connector
  • 10mm Min. Bend Radius Corning SMF-28® Ultra Fiber
  • OFNP (Plenum) Fire Rating
  • IEC-61754-7 and TIA-604-5 (FOCIS-5)
  • Ideal for 40G/100G Indoor Connections
  • 30-Day Return, 1-Year Warranty, Lifetime After-sales Technical Support.
20m (66ft) MPO-12 APC (Female) to MPO-12 APC (Female) Yellow Single Mode Elite Trunk Cable for Mellanox
NVIDIA/Mellanox MFP7E30-N020 Compatible 20m (66ft) MPO-12 (Female) to MPO-12 (Female) Yellow OS2 12 Fibers Type B, LSZH Single Mode Elite Trunk Cable 3mm
NADDOD
Specifications
Product Highlights
Resources
Specifications
Product Highlights
Resources
NADDOD NADDOD
Specifications
Connector A

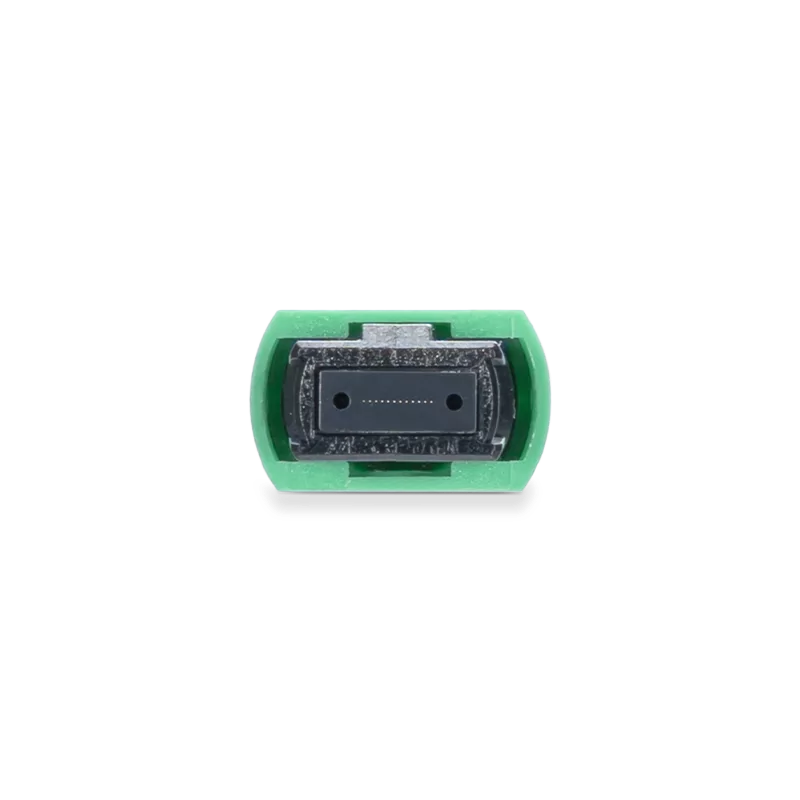

MPO Female (Pinless)
Connector B
MPO Female (Pinless)
Fiber Mode
OS2 9/125μm SM
Wavelength
1310/1550nm
Polish Type
APC to APC
Minimum Bend Radius
10mm
Insertion Loss
0.35dB Max (0.15dB Typ.)
Return Loss
≥60dB
Attenuation at 1310nm
≤0.32dB/km
Attenuation at 1550nm
≤0.18dB/km
Jacket OD
3.0mm
Cable Jacket
LSZH
Installation Tensile Load
66N
Minimum Bend Radius
10mm
Tensile Strength (Long/Short Term)
80/240N
Storage Temperature
-40 to 85°C (-40 to 185℉)
Operating Temperature
-10 to 70°C (14 to 158℉)
Fiber Count
12F
Certification
IEC-61754-7 and TIA-604-5 (FOCIS-5)
Customization
NADDOD
Product Highlights
Resources
S2MPOA12FB Datasheet
Quality Certification
ISO140012015
ISO 90012015
ISO450012018
FDA
FCC
CE
RoHS
TUV-Mark
UL
WEEE
