What should I consider when using patch cords?

When using patch cords, ensure that they are compatible with the module and connector types. Avoid excessive bending or pulling. Regularly clean the patch cord end faces to prevent contamination and maintain signal transmission quality.

15m (49ft) MFP7E40-N015 MPO-12 APC Female to 2 MPO-4 APC Female Single Mode Elite Breakout Cable

Click to open expanded view

Global Local Service

Lifetime Technical Support

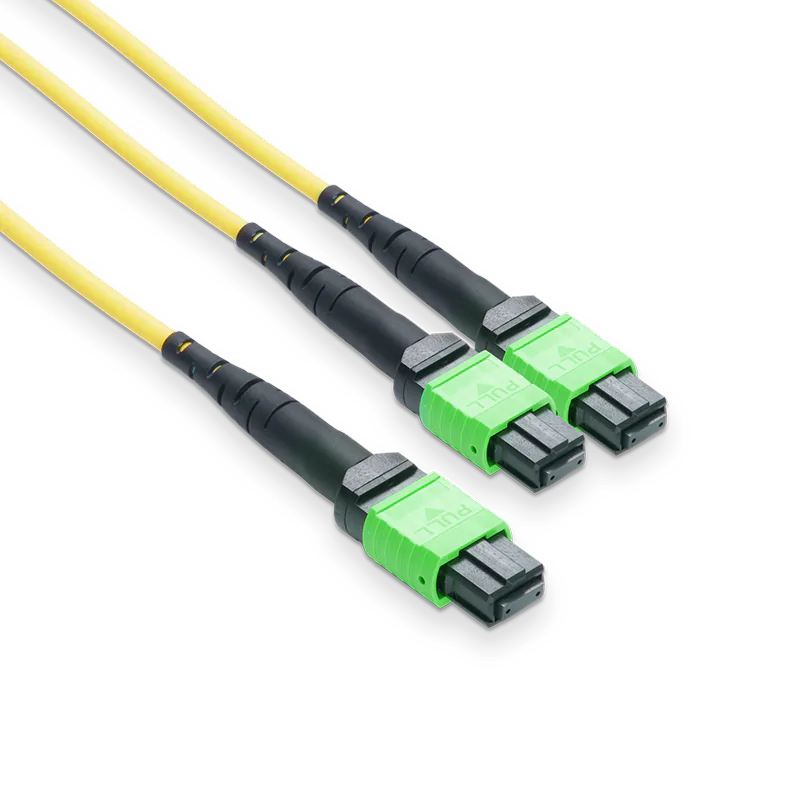

NVIDIA/Mellanox MFP7E40-N015 Compatible 15m (49ft) MPO-12 APC Female to 2 MPO-4 APC Female Yellow OS2 Type B LSZH Single Mode Elite Breakout Cable

Name: NVIDIA/Mellanox MFP7E40-N015 Compatible 15m (49ft) MPO-12 APC Female to 2 MPO-4 APC Female Yellow OS2 Type B LSZH Single Mode Elite Breakout Cable
Brand: Naddod
SKU: 102628
Price: 51.00 USD
Availability: OnlineOnly
Rating: 5.0 (18 reviews)

#102628

Model: S2MPOA2x4F | SKU: 980-9I58K-00N015

Sold: 2.2K+

In Stock: Available

$ 51.00

Cable Types:

MFP7E40-N015

MFP7E40-N015

Brand:

NADDOD (InfiniBand)

Length:

15m (49ft)

15m (49ft)

Shipping:Choose Your Country To Known Postage

Quantity:

Total Price:$ 51.00

Guaranteed RMA

Choose your location

Carrier	Delivery Time	Cost

Item Spotlights

MPO Connectors with Optimal 0.35dB Low IL.
Paired with NDD Transceivers, raw physical BER is better than E-8, perfectly compatible with InfiniBand system.
30mm Min. Bend Radius Corning ClearCurve® Fiber.
OFNP (Plenum) Fire Rating.
IEC 61754-7 and ANSI/TIA/EIA 604-5-199.
3 Years Warranty, Lifetime After-sales Technical Support.

NVIDIA/Mellanox MFP7E40-N015 Compatible 15m (49ft) MPO-12 APC Female to 2 MPO-4 APC Female Yellow OS2 Type B LSZH Single Mode Elite Breakout Cable

Free Worldwide Shipping on Orders over $ 99

$ 51.00

Specifications

Applications

Questions & Answers

Resources

Specifications

Applications

Questions & Answers

Resources

Description

NVIDIA/Mellanox MFP7E40-N015 Compatible 15m (49ft) MPO-12 APC Female to 2 MPO-4 APC Female Yellow OS2 Type B LSZH Single Mode Elite Breakout Cable

NVIDIA/Mellanox MFP7E40-N015 (980-9I58K-00N015) Compatible S2MPOA2x4F is a singlemode, 4-channel-to-two 2-channel featuring MPO-12 APC to 2xMPO-4 APC connectors. When connecting an 800G NVIDIA InfiniBand OSFP twin-port transceiver to four 400G OSFP/QSFP112 transceivers, only two channels are activated in 400G OSFP/QSFP112, enabling a 200Gb/s link.

Specifications

Connectors

MPO Female-to-Female

Max reach

50m

Fiber Mode

OS2 9/125μm

Wavelength

1310/1550nm

Polish Type

APC to APC

Minimum Bend Radius

30mm

Insertion Loss

0.35dB Max

Return Loss

≥60dB

Cable diameter

3mm

Cable Jacket

OFNR/LSZH

Installation Tensile Load

66N

Fiber Count

12F to 2x4F

Tensile Strength (Long/Short Term)

80/240N

Operating temperature

0 to70°C

Storage temperature

-40 to 85°C

Certification

IEC 61754-7 and ANSI/TIA/EIA 604-5-199

Applications

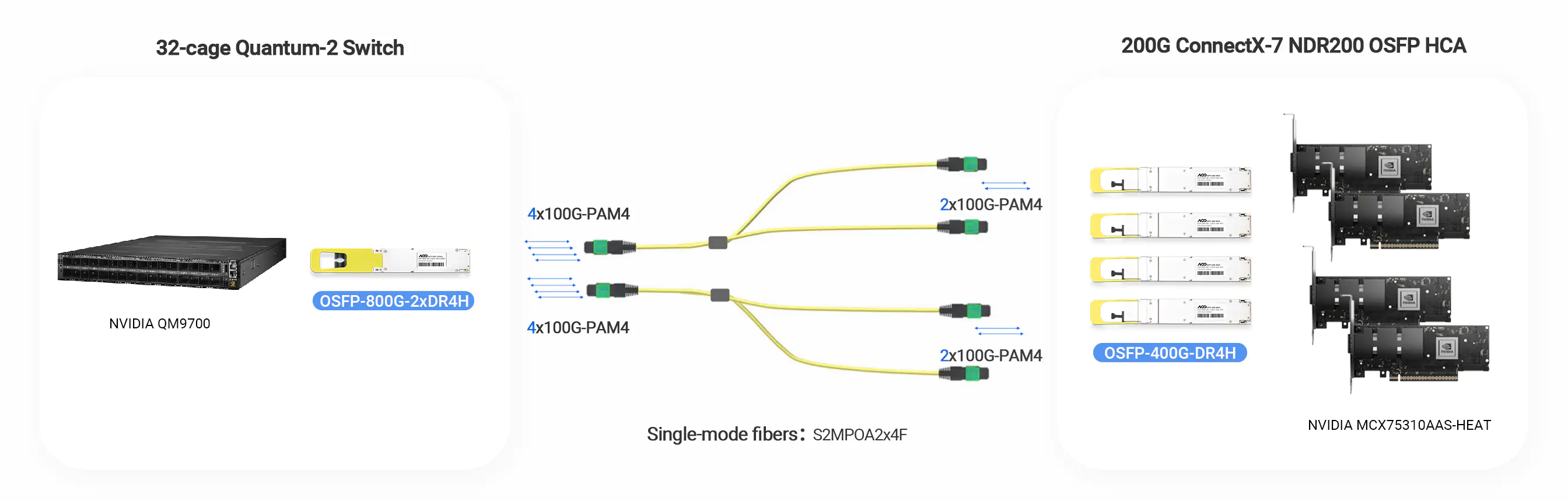

800G Switch to 4x200G NDR200 HCA

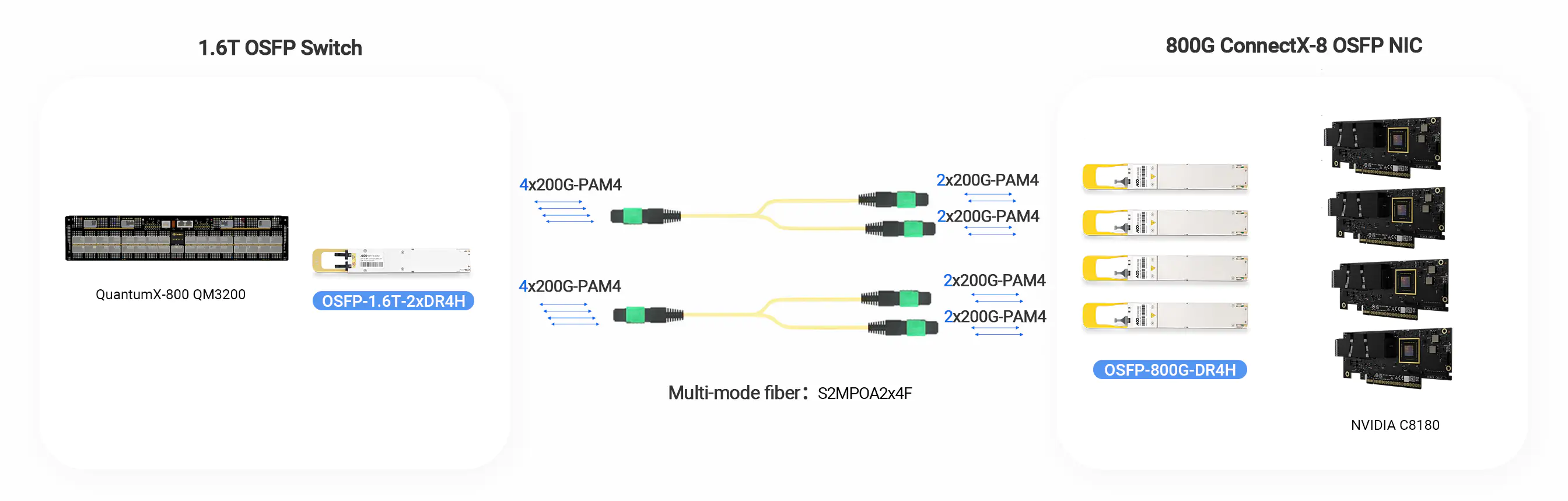

1.6T Switch to 4x400G NIC

S2MPOA2x4F is the fiber cable which is connected with IB 800G OSFP 2×DR4/DR8 and 400G OSFP DR4.

NVIDIA/Mellanox MMS4X00-NS Compatible 800G 2xDR4/DR8 OSFP PAM4 1310nm 100m DOM Two MPO-12/APC InfiniBand NDR Transceiver Module for SMF (Finned Top)

$ 1368.00

NVIDIA MQM9700-NS2F Quantum-2 NDR InfiniBand Switch, 64 x 400Gb/s Ports, 32 OSFP Cages, Managed, Power-to-connector(P2C) Airflow(forward), with 1-year Service

$ 34898.00

NVIDIA/Mellanox MMS4X00-NS400 Compatible 400G DR4 OSFP PAM4 1310nm 100m DOM Single MPO-12/APC InfiniBand NDR Transceiver Module for SMF (Flat Top)

$ 999.00

Questions & Answers

Ask a Question

What module should be used with the S2MPOS2x4F fiber patch cable?

It is typically used for branching applications, connecting modules such as OSFP-800G-2xDR4H and four OSFP-400G-DR4H modules(NDR200).

What is the difference between the female and male connectors of MTP/MPO patch cords?

Patch cord connectors can be either female or male, referring to the gender type of the connector. Male connectors have pins, while female connectors do not. When connecting two cables using an adapter, they must have opposite genders (one male and one female). When connecting with a module, a female connector is typically used.

What is the difference between APC and UPC connectors in fiber patch cables?

APC connectors have an 8-degree angled end face, which significantly reduces back reflections, minimizing signal distortion and improving transmission performance. They are commonly used in single-mode fiber links or with APC interface multimode modules for high-speed applications. UPC connectors have a flat end face angle and offer lower return loss compared to APC. They are commonly used in multimode fiber links.
