400GBASE-FR4 QSFP112 PAM4 1310nm 2km SMF Module for Arista

Click to open expanded view

400GBASE-FR4 QSFP112 PAM4 1310nm 2km SMF Module for Arista
Global Local Service
Lifetime Technical Support

Arista Compatible 400GBASE-FR4 QSFP112 PAM4 1310nm 2km Duplex LC SMF Optical Transceiver Module

#102154
Model: Q112-400G-FR4
Sold: 14
Lead Time: 5 Working Days
$ 988.00
Transceiver Types:
Q112-400G-SR4
Q112-400G-VR4
Q112-400G-DR4
Q112-400G-FR4
Q112-400G-SR4
Q112-400G-VR4
Q112-400G-DR4
Q112-400G-FR4
Brand:
Cisco
Arista
NVIDIA/Mellanox (Ethernet)
Cisco
Arista
NVIDIA/Mellanox (Ethernet)
Shipping:Choose Your Country To Known Postage
Quantity:
Total Price:$ 988.00

Add to Cart

Continue Shopping
Subtotal:
$0
Continue Shopping

Choose your location

CarrierDelivery TimeCost

Product Sample Request

Already have an account? Sign in or Create an account

Please fill in the product ID or upload the product list

NADDOD
Confirm
Contact Information
+1
upload file
I agree to NADDOD's Privacy Policy and Term of Use.
Submit

Sample Application Agreement:

The sample is solely offered for tryout, and it is not free. Samples follow the purchase process. Some of your special requests, such as prepaid purchases or free samples need to be approved by contacting your sales representative for application.

After testing, you will need to either return it back to get your deposit refund, or make payment for it and keep it.

For the sample orders, if it met with the Free Shipping policy, then shipping and delivery cost would be covered by NADDOD. But if it is not, then the shipping and delivery cost and additional charges in transit (e.g. tariff for customs clearance if any) should be borne by buyer.

The sample orders are compliance with our warranty policy stated on our product Support-Warranty page.

The test period is 30 days from the receipt of goods. After 30 days, you can decide to pay for the product and keep it if you are satisfied, or return it back if it is not suitable. Overdue payment will be charged if the test sample is not returned timely after the test period finishes.

We will conduct a comprehensive inspection upon receiving the returned goods. If the sample is found damaged, compensation is necessary, and the amount varies from the product's value and test results.

Product Sample Request

Already have an account? Sign in or Create an account

Please fill in the product ID or upload the product list

NADDOD
Confirm
Contact Information
+1
upload file
I agree to NADDOD's Privacy Policy and Term of Use.
Submit

Sample Application Agreement:

The sample is solely offered for tryout, and it is not free. Samples follow the purchase process. Some of your special requests, such as prepaid purchases or free samples need to be approved by contacting your sales representative for application.

After testing, you will need to either return it back to get your deposit refund, or make payment for it and keep it.

For the sample orders, if it met with the Free Shipping policy, then shipping and delivery cost would be covered by NADDOD. But if it is not, then the shipping and delivery cost and additional charges in transit (e.g. tariff for customs clearance if any) should be borne by buyer.

The sample orders are compliance with our warranty policy stated on our product Support-Warranty page.

The test period is 30 days from the receipt of goods. After 30 days, you can decide to pay for the product and keep it if you are satisfied, or return it back if it is not suitable. Overdue payment will be charged if the test sample is not returned timely after the test period finishes.

We will conduct a comprehensive inspection upon receiving the returned goods. If the sample is found damaged, compensation is necessary, and the amount varies from the product's value and test results.

Item Spotlights

  • Max Power Consumption ≤10W.
  • Provide Professional Compatibility and Parameter Test Reports.
  • Compliant with Hot Pluggable QSFP112 MSA, IEEE 802.3ck, CMIS 5.0 Standard.
  • Class1/1M Standard Product, Compliant with RoHS Environmental Protection Standards (Lead-Free).
  • DDM (Digital Diagnostic Monitoring) Supported.
  • Supports AI Data Center (AIDC) and Data Center Network (DCN) Deployments.
  • Significantly Improve the Flexibility, Economy and Reliability of Networking.
  • 30-Day Free Return, 1-Year Free Replacement, 3-Year Warranty, Lifetime After-sales Technical Support.
400GBASE-FR4 QSFP112 PAM4 1310nm 2km SMF Module for Arista
Arista Compatible 400GBASE-FR4 QSFP112 PAM4 1310nm 2km Duplex LC SMF Optical Transceiver Module
NADDOD

$ 988.00

Add to Cart

Continue Shopping
Subtotal:
$0
Continue Shopping
Specifications
Applications
Product Highlights
Questions & Answers
Customer Reviews
Resources
Specifications
Applications
Product Highlights
Questions & Answers
Customer Reviews
Resources

Description

Arista Compatible 400GBASE-FR4 QSFP112 PAM4 1310nm 2km Duplex LC SMF Optical Transceiver Module

The Q112-400G-FR4 transceiver, duplex LC connector, has a transmission distance of up to 2 km over parallel single-mode fiber. It complies with the QSFP112 MSA, CMIS 5.0 interface, and 400GAUI-4 standards. Built-in digital diagnostic monitoring (DDM) allows access to real-time operating parameters. It is suitable for 400G Ethernet, AI Data Center (AIDC) and Data Center Network (DCN) applications.

Specifications

Form Factor
QSFP112
Distance
2km
Wavelength
1310nm
Connector
Duplex LC
Power Consumption
≤10W
Transmitter
EML
Receiver
PIN
Media
SMF
Modulation（electrical）
4x106.25Gb/s PAM4
Modulation（Optical）
4x106.25Gb/s PAM4
Case Temperature(℃)
0 to 70°C (32 to 158°F)
Protocol
400G Ethernet Compliant
Connectivity Solutions
Spine-leaf Architecture

This architecture is based on the 400G QSFP112 switch to achieve high-bandwidth and low-latency data transmission, meeting the requirements of high-performance computing (HPC), artificial intelligence/machine learning (AI/ML), big data analytics, and other data-intensive applications.

Spine-leaf Architecture

undefined

:
$0

Applications

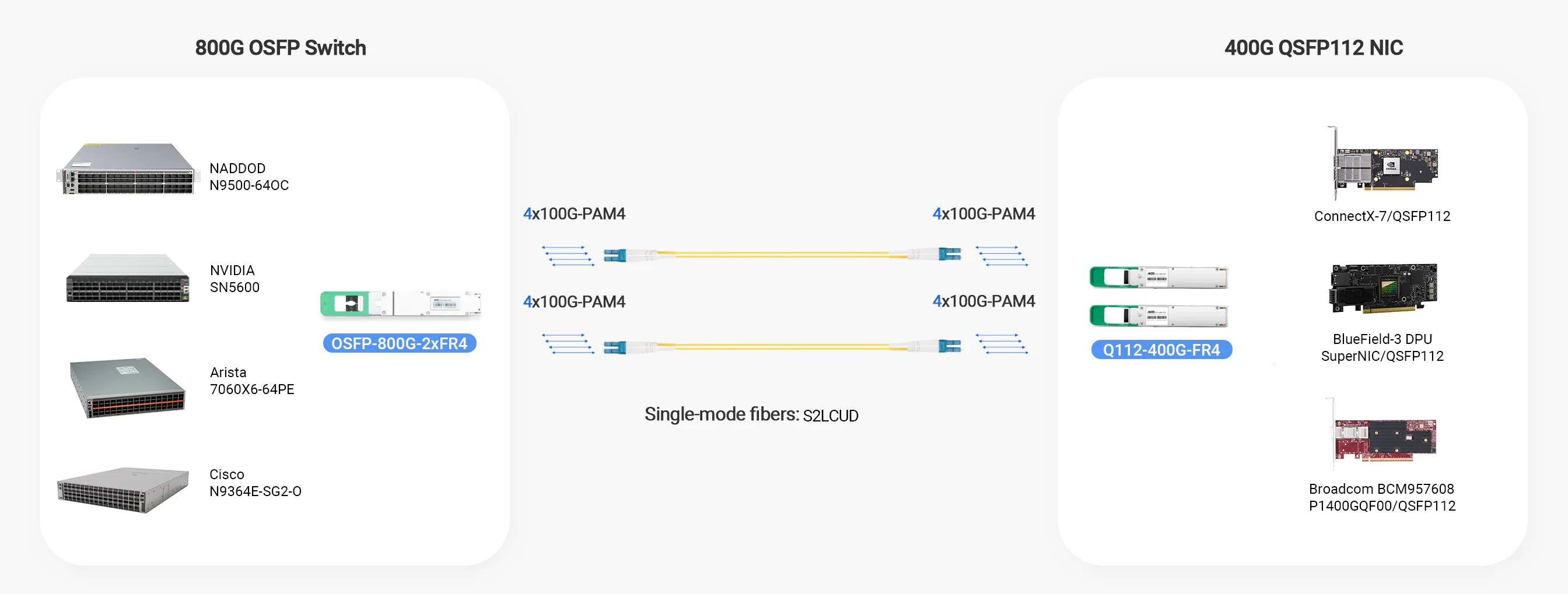

800G Switch to 400G QSFP112 NIC

400G Switch to 400G Switch

400G QSFP112 FR4 is connected with NVIDIA ConnectX-7, BlueField-3 DPU Super NIC and Broadcom(BCM957608P1400GQF00/QSFP112).

Add to Cart

Continue Shopping
Subtotal:
$0
Continue Shopping

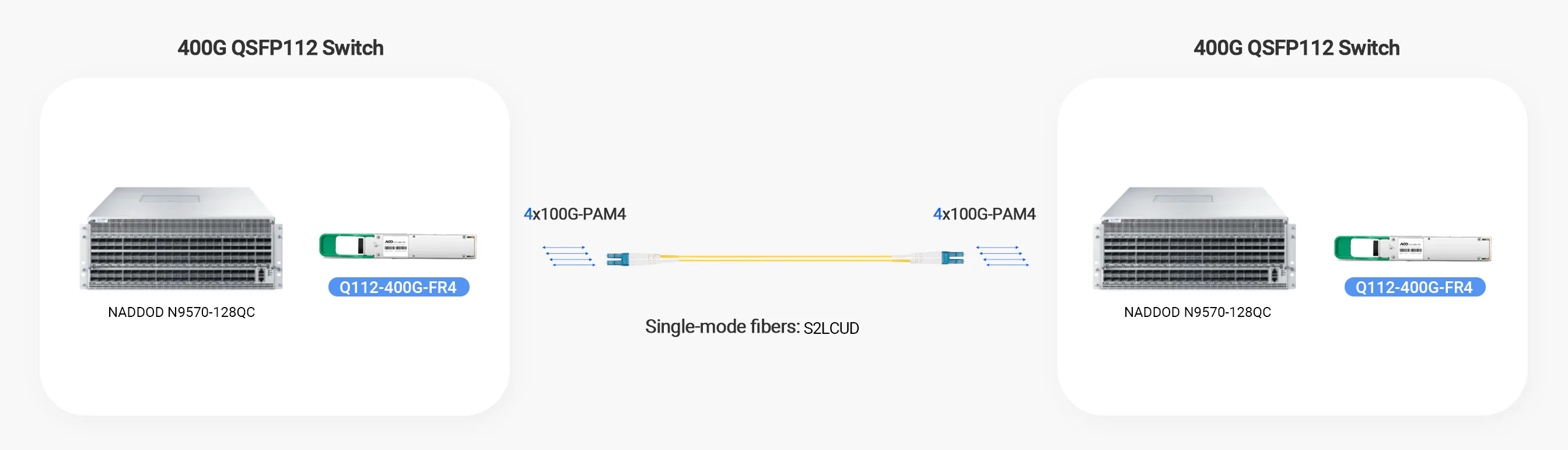

400G QSFP112 FR4 is connected with NADDOD N9570-128QC.

Add to Cart

Continue Shopping
Subtotal:
$0
Continue Shopping

Product Highlights

100% Compatibility Validated in Arista/NVIDIA/Cisco/Broadcom RoCE Networking

NADDOD modules, AOCs, and DACs are professionally tested and fully compatible with the latest mainstream devices of Arista 7060X6 series data center switches, NVIDIA Spectrum-4 SN5000 series, Cisco Nexus 9300-GX2 series and Broadcom NIC BCM957608 series, which guarantees unmatched interoperability, high reliability and seamless operation in complex RoCE applications.

NVIDIA/Mellanox (Ethernet)
Arista
Juniper
Cisco
Dell
Broadcom
HUAWEI
H3C
Request Test Reports
  • 920-9N42C-00RB-7C0
  • 920-9N42F-00RI-7C0
  • MSN4700-WS2FC
  • MSN4700-WS2RC
  • MSN4600-VS2FC
  • MSN4600-VS2RC
  • MSN4600-CS2FC
  • MSN4600-CS2RC
  • MSN4280-WS2RXOS
  • MSN3700-VS2FC
  • MSN3700-VS2RC
  • MSN3700-CS2FC
  • MSN3700-CS2RC
  • MSN3750-VS2FSC
  • MSN3750-VS2RSC
  • MSN3420-CB2FC
  • MSN3420-CB2RC
  • MCX75310AAS-NEAT
  • MCX75310AAC-NEAT
  • MCX75510AAS-NEAT
  • MCX75310AAS-HEAT
  • MCX75510AAS-HEAT
  • MCX715105AS-WEAT
  • MCX755106AS-HEAT
  • View More
NADDOD Product Ensures Low BER, High Reliability in Complex RoCE Interconnection

In the RS-FEC(544,514) test, NADDOD products achieve pre-FEC BER of -9~-11, and near-zero post-FEC BER, which can meet the strict requirements for high performance and stable networking connection.

NADDOD

Questions & Answers

Ask a Question

Ask Questions

Your question was submitted. NADDOD support team will reply to you ASAP.
Q:
Can 400G QSFP-DD/QSFP112/OSFP optical modules under the RoCE networking be used in both ai data center (AIDC) and data center network (DCN)?
A:
Yes, all these modules can be used in both AIDC and DCN scenarios in theory. The actual deployment depends on the device-side port type. For DCN-focused deployments, the QSFP-DD series is generally more commonly used.
Q:
Can the QSFP112 400G FR4 module be used on an OSFP port?
A:
OSFP and QSFP112 are two completely different form factors, and the QSFP112 cannot be used on an OSFP port.
Q:
What are the similarities and differences between Q112-400G-FR4 and QDD-400G-FR4?
A:
The main difference lies in the packaging. QSFP-DD uses 8x50G/lane, while QSFP112 uses 4x100G/lane. Both have 4x100G PAM4 modulation on the optical side, and when paired with single-mode duplex LC jumpers, can achieve a transmission distance of up to 2km.
View More

Customer Reviews

5.0
2 Reviews
  • 5 Star
    100%
  • 4 Star
    0%
  • 3 Star
    0%
  • 2 Star
    0%
  • 1 Star
    0%
All Reviews (2)
  • Verified Purchase
    Verified Purchase
    5.0
    I'm pleased to hear that the shipment was fast and that the module fit perfectly with your equipment.
    Helpful (8)Comments
  • Verified Purchase
    Verified Purchase
    5.0
    I'm glad to hear that after communicating with the technical personnel, they informed you that this module is suitable for your network cluster and can meet your requirements. It's great to know that it is working well for you after receiving it.
    Helpful (6)Comments
