What is the difference between O4Q112-800G-ACC and O4Q112-800G-DAC?

O4Q112-800G-DAC is a passive copper cable. The connector of the passive copper cable does not contain active components and can provide a direct electrical connection between the corresponding cable ends. The longest transmission distance is 3m. O4Q112-800G-ACC is a passive copper cable with integrated equalizer circuit. It can extend the length up to 4 meters and 5 meters while maintaining low latency and low power consumption of 1.5W and 0.6W respectively.

What are the main application scenarios for the O4Q112-800G-DAC cable?

It is mainly used for switches with OSFP ports, with the branch end connected to a 200G QSFP112 port of either ConnextX-7 network card or BlueFIeld-3 DPU.

Can the O4Q112-800G-DAC cable be used for 200G network cards with OSFP ports?

No, it cannot be used. QSFP112 and OSFP are two different form factors with inconsistent sizes, and they cannot be used together.

Can the branch end of the O4Q112-800G-DAC cable be used for a 400G QSFP112 port network card?

In general, 400G QSFP112 network cards can support lower speeds such as 200G, so you can use this cable.

1m (3ft) Twin-port 2x400Gb/s OSFP to 4x200Gb/s QSFP112 Passive Copper Splitter Cable for Cisco

Click to open expanded view

Global Local Service

Lifetime Technical Support

Cisco Compatible DAC 1m (3ft) Twin-port 2x400Gb/s OSFP Finned Top to 4x200Gb/s QSFP112 Flat Top Passive Copper Splitter Cable

Name: Cisco Compatible DAC 1m (3ft) Twin-port 2x400Gb/s OSFP Finned Top to 4x200Gb/s QSFP112 Flat Top Passive Copper Splitter Cable
Brand: Naddod
SKU: 102145
Price: 209.00 USD
Availability: OnlineOnly
Rating: 5.0 (18 reviews)

#102145

Model: O4Q112-800G-CU1

Sold: 0

In Stock: Available

$ 209.00

Cable Types:

O4Q112-800G-CU1

O4Q112-800G-CU1

Brand:

NVIDIA/Mellanox (Ethernet)

Arista

Cisco

NVIDIA/Mellanox (Ethernet)

Arista

Cisco

Length:

1m (3ft)

1m (3ft)

Item Spotlights

Low-latency, Low-power, Higher port bandwidth, density and configurability, reduced power requirement in the data centers.
Provide Professional Compatibility and Parameter Test Reports.
Free test environment and samples are available to experience the high-quality product performance.
Complies with OSFP/QSFP112 MSA, CMIS, and RoHS protocols, providing a reliable and sustainable solution.
30-Day Free Return, 1-Year Free Replacement, 3-Year Warranty, Lifetime After-sales Technical Support.

Cisco Compatible DAC 1m (3ft) Twin-port 2x400Gb/s OSFP Finned Top to 4x200Gb/s QSFP112 Flat Top Passive Copper Splitter Cable

Free Worldwide Shipping on Orders over $ 99

Specifications

Applications

Product Highlights

Questions & Answers

Customer Reviews

Resources

Specifications

Applications

Product Highlights

Questions & Answers

Customer Reviews

Resources

Description

Cisco Compatible Passive Copper Splitter Cable, Twin Port 800Gb/s to 4x200Gb/s, OSFP Finned Top to 4xQSFP112 Flat Top, 1m

NADDOD O4Q112-800G-CU1 is an 800Gb/s Twin-port OSFP (Octal Small Form-factor Pluggable) Finned Top to 4x200Gb/s QSFP112 (Quad Small Form-factor Pluggable 112G) Flat Top passive Direct Attach Copper (DAC) quad breakout (aka splitter) cable for End-to-End Ethernet solutions. The 8-channel Twin port OSFP end uses a finned top form-factor for use in OSFP switch cages. The four 200G ends support 2-channels of 100G-PAM4 (200G) and use a flat top QSFP112 connector cage adapters. DAC cables are the lowest-cost, lowest-latency, near zero power consuming high-speed links available due to their simplicity of design and minimal components.

Specifications

Form Factor

OSFP to 4xQSFP112

Cable Length

1m~3m

Wire AWG

26AWG~30AWG

Commercial Temperature Range

0~70°C(32 to 158°F)

Jacket Material

PVC

Power Consumption

<0.1W

Minimum Bend Radius

10x OD

Application

800G/200G Ethernet Compliant

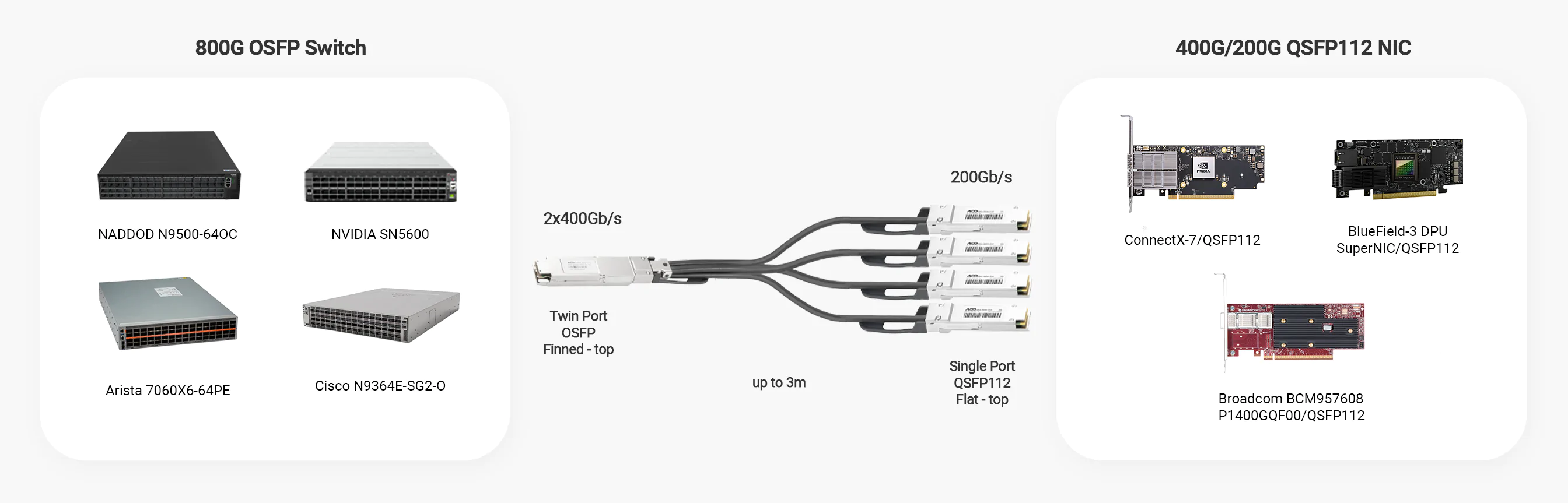

Applications

Product Highlights

Finned Top and Flat Top Unlock Optimal Application Scenarios

800G Breakout DAC integrates different heat sink designs of the two-end transceivers, unleashing powerful performance.

The 800G OSFP end transceiver adopts a finned top to provide the necessary thermal management when handling massive data, which is applied for Spectrum-4 Ethernet switches.

Each module on the two or four 400G QSFP112 breakout side has a flat-top design used in CX7 NICs and DPU, Which relying on heatsinks on the NIC ports to assist the module in cooling.

Questions & Answers

Ask a Question

If I only use 3 out of 4 branches of the branch cable and leave one branch uninstalled on the network card, will it affect the usage of the three branches?

No, it won't affect. After port configuration and splitting, internally in the device, it is recognized as multiple logical ports. Each branch of the cable corresponds to a logical port, and they do not affect each other.

Why are there no 800G AOCs?

OSFP is very large and heavy, and the fiber can break easily. A two-branch cable will have 3 large transceiver ends, and a four-branch cable will have 5 transceivers. This will almost certainly easily lead to fiber breakage during installation - especially for a 30m long AOC.

We have some 800G OSFP port switches connected with original cables, will there be any incompatibility issues if we use them with your cables?

NADDOD cables comply with international standards and have good interoperability ,compatibility. It can be used with original cables.

Customer Reviews

4.5

2 Reviews

5 Star
0%
4 Star
0%
3 Star
0%
2 Star
0%
1 Star
0%

All Reviews (2)

k***n
Verified Purchase
k***n
Verified Purchase
4.5
Everything is working fine between our 800G switch and 200G network card. The NADDOD technical team provides us with relevant operational tips, offering a great service experience.
Helpful (9)Comments
g***e
Verified Purchase
g***e
Verified Purchase
4.5
The DAC cable has a simple structure, making it easy for deployment and maintenance in our data center.
Helpful (4)Comments

Resources

O4Q112-800G-DAC Datasheet
