Cisco Compatible 400GBASE-SR4 OSFP PAM4 850nm 50m MTP/MPO-12 APC MMF Optical Transceiver Module

#102113
Model: OSFP-400G-SR4
Sold: 10
In Stock: Available
$ 699.00
Transceiver Types:
OSFP-400G-SR4
OSFP-400G-DR4
OSFP-400G-SR4
OSFP-400G-DR4
Brand:
Generic
NVIDIA/Mellanox (Ethernet)
Arista
Cisco
Generic
NVIDIA/Mellanox (Ethernet)
Arista
Cisco

Item Spotlights

  • Max Power Consumption ≤9W.

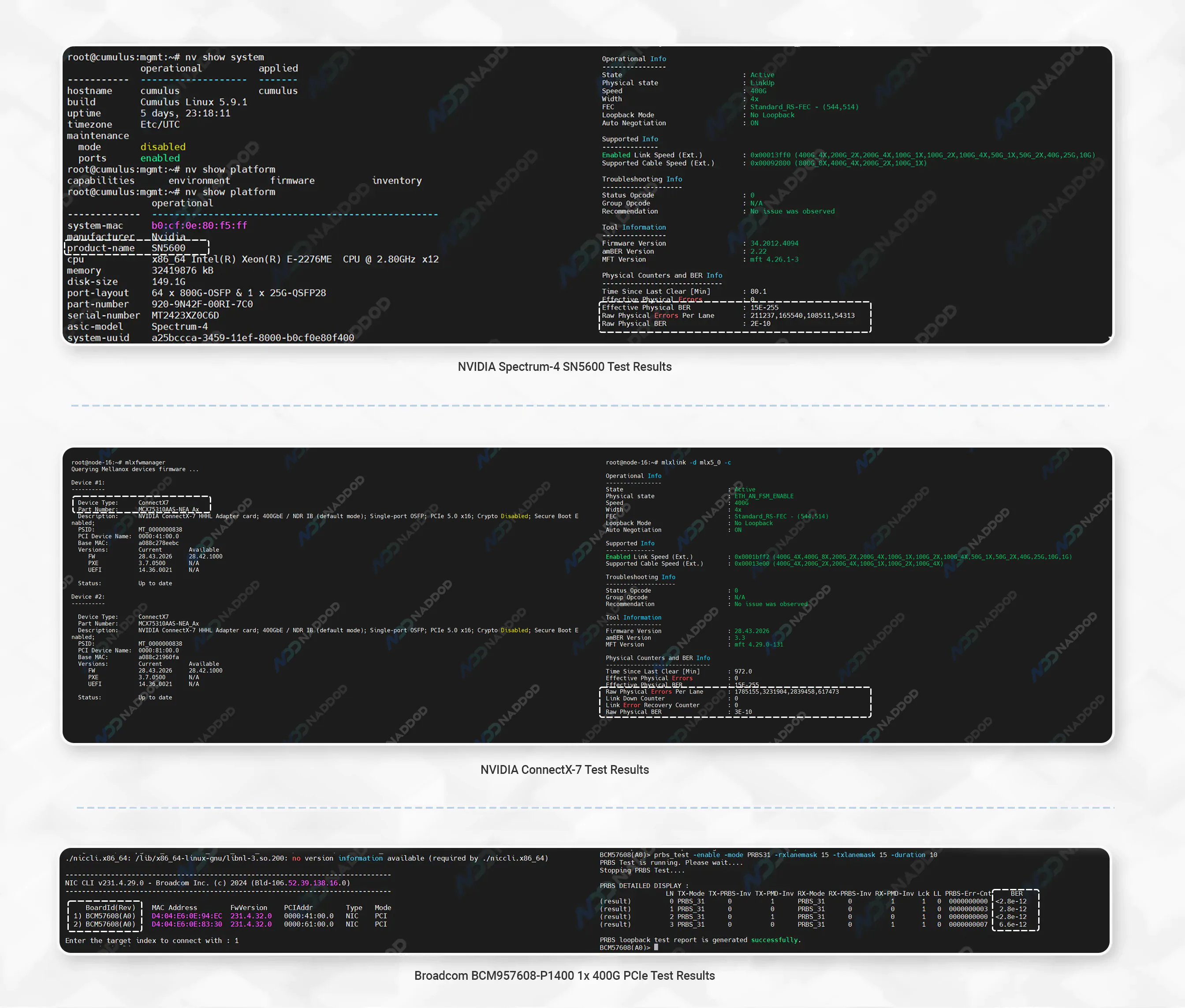

  • Provide Professional Compatibility and Parameter Test Reports.
  • Compliant with Hot Pluggable OSFP MSA, IEEE 802.3ck, CMIS 4.0 Standard.
  • Class1/1M Standard Product, Compliant with RoHS Environmental Protection Standards (Lead-Free).
  • DDM(Digital Diagnostic Monitoring) Supported.
  • Significantly Improve the Flexibility, Economy and Reliability of Networking.
  • 30-Day Free Return, 1-Year Free Replacement, 3-Year Warranty, Lifetime After-sales Technical Support.
400GBASE-SR4 OSFP PAM4 850nm 50m MMF Module for Cisco
Cisco Compatible 400GBASE-SR4 OSFP PAM4 850nm 50m MTP/MPO-12 APC MMF Optical Transceiver Module
NADDOD
Specifications
Applications
Product Highlights
Questions & Answers
Customer Reviews
Resources
Specifications
Applications
Product Highlights
Questions & Answers
Customer Reviews
Resources
Description

Cisco Compatible 400GBASE-SR4 OSFP PAM4 850nm 50m MTP/MPO-12 APC MMF Optical Transceiver Module

NADDOD OSFP-400G-SR4 is a four-Channel, Parallel, Pluggable, Fiber-Optic OSFP for 400Gigabit Ethernet applications. This transceiver is a high performance module for short range data communication and interconnect application. It integrates four data lanes in each direction with 4x53.125GBd. The length of OSFP SR4 is up to 30 meters over OM3 MMF or 50 meters over OM4 MMF.

Specifications
Form Factor
OSFP
Distance
50m
Wavelength
850nm
Connector
MTP/MPO-12 APC
Power Consumption
≤9W
Transmitter
VCSEL
Receiver
PIN
Media
MMF
Modulation（electrical）
4x106.25Gb/s PAM4
Modulation（Optical ）
4x106.25Gb/s PAM4
Case Temperature(℃)
0~70°C(32 to 158°F)
Protocol
400G Ethernet Compliant
Applications
Product Highlights
Optimal Connector Shells Ensure More Stable and Reliable Solutions

Finned top and flat top connector shells are different in size and application solutions, delivering deep insights for your business.

Optimal Connector Shells Ensure More Stable and Reliable Solutions

800G OSFP optical modules integrated in a heat sink are applicable for Spectrum-4 Ethernet switches. Its top heat sink provides the necessary thermal management when processing massive data.

Flat Top module's height is 9.5 mm without heat sinks, relying on the heatsinks on the NIC ports to assist the module in cooling. 400G OSFP form factor optical modules are used in CX7 NICs.

Questions & Answers
Ask a Question
Q:
Can 400G SR4 be interconnected with 800G Twin-Port 2xSR4?
A:
Yes, 800G Twin-Port 2xSR4 with two OM4 MPO-12/APC patch cables can be connected to two 400G SR4 optical modules.
Q:
Can QSFP-DD ports use modules in OSFP form factor, such as OSFP-400G-SR4?
A:
OSFP and QSFP-DD are two completely different form factors, so OSFP optical modules cannot be used in OSFP-DD ports.
Q:
What is the main connectivity solution for the OSFP-400G-SR4?
A:
The OSFP-400G-SR4 is mainly used for OSFP port ConnectX-7 adapters, with the opposite end connecting to OSFP-800G-2xSR4 optical modules on 800G OSFP switches.
View More
Customer Reviews
4.5
3 Reviews
  • 5 Star
    0%
  • 4 Star
    0%
  • 3 Star
    0%
  • 2 Star
    0%
  • 1 Star
    0%
All Reviews (3)
  • Verified Purchase
    Verified Purchase
    4.5
    The NADDOD team provided us with many solution suggestions. They are truly professional in high-speed module network setups and very trustworthy.
    Helpful (2)Comments
  • Verified Purchase
    Verified Purchase
    4.5
    The module is running perfectly, and all my special requirements were met. It was a pleasant shopping experience.
    Helpful (7)Comments
  • Verified Purchase
    Verified Purchase
    4.5
    The module's performance is excellent, and we will be purchasing more.
    Helpful (10)Comments
Resources
OSFP-400G-SR4 Datasheet
