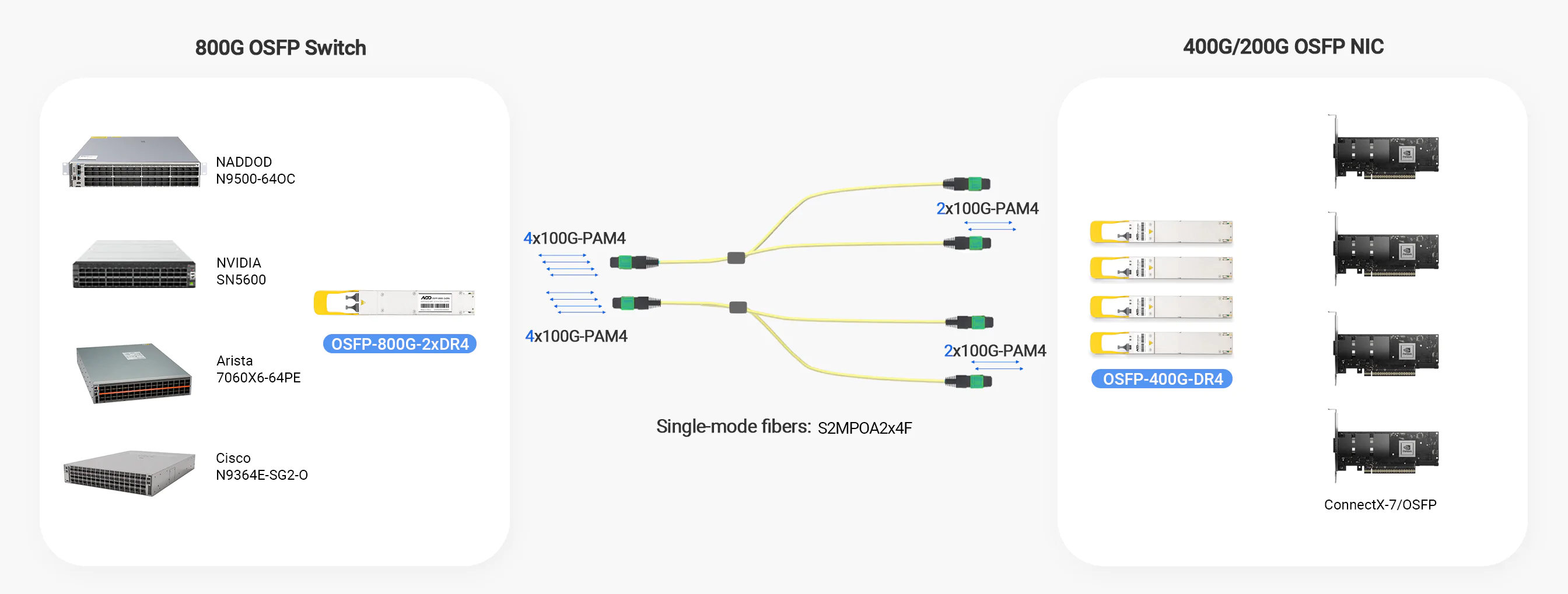

What is the main connectivity solution for the OSFP-400G-DR4?

The OSFP-400G-DR4 is mainly used for OSFP port ConnectX-7 adapters, with the opposite end connecting to OSFP-800G-2xDR4 optical modules on 800G OSFP switches.

400GBASE-DR4 OSFP PAM4 1310nm 100m SMF Module for Arista

Click to open expanded view

Global Local Service

Lifetime Technical Support

Arista OSFP-400G-DR4 Compatible 400GBASE-DR4 OSFP PAM4 1310nm 100m MTP/MPO-12 APC SMF Optical Transceiver Module

Name: Arista OSFP-400G-DR4 Compatible 400GBASE-DR4 OSFP PAM4 1310nm 100m MTP/MPO-12 APC SMF Optical Transceiver Module
Brand: Naddod
SKU: 102104
Price: 829.00 USD
Availability: OnlineOnly
Rating: 5.0 (18 reviews)

#102104

Model: OSFP-400G-DR4

Sold: 9

In Stock: Available

$ 829.00

Transceiver Types:

OSFP-400G-SR4

OSFP-400G-DR4

OSFP-400G-SR4

OSFP-400G-DR4

Brand:

Generic

NVIDIA/Mellanox (Ethernet)

Arista

Cisco

Generic

NVIDIA/Mellanox (Ethernet)

Arista

Cisco

Item Spotlights

Max Power Consumption ≤9W.
Provide Professional Compatibility and Parameter Test Reports.
Compliant with Hot Pluggable OSFP MSA, IEEE 802.3ck, CMIS 5.2 Standard.
Class1/1M Standard Product, Compliant with RoHS Environmental Protection Standards (Lead-Free).
DDM(Digital Diagnostic Monitoring) Supported.
Significantly Improve the Flexibility, Economy and Reliability of Networking.
30-Day Free Return, 3-Year Free Replacement, 5-Year Warranty, Lifetime After-sales Technical Support.

Arista OSFP-400G-DR4 Compatible 400GBASE-DR4 OSFP PAM4 1310nm 100m MTP/MPO-12 APC SMF Optical Transceiver Module

Free Worldwide Shipping on Orders over $ 99

Specifications

Applications

Product Highlights

Questions & Answers

Customer Reviews

Resources

Specifications

Applications

Product Highlights

Questions & Answers

Customer Reviews

Resources

Description

Arista OSFP-400G-DR4 Compatible 400GBASE-DR4 OSFP PAM4 1310nm 100m MTP/MPO-12 APC SMF Optical Transceiver Module

NADDOD OSFP-400G-DR4 transceiver is a high performance, cost effective module for optical data communication applications supporting 400G Ethernet. The OSFP-400G-DR4 is designed to operate in switch and router applications supporting OSFP MSA compliant traffic for up to 100m links.

Specifications

Form Factor

OSFP

Distance

100m

Wavelength

1310nm

Connector

MTP/MPO-12 APC

Power Consumption

≤9W

Transmitter

EML

Receiver

Media

SMF

Modulation（electrical）

4x106.25Gb/s PAM4

Modulation（Optical）

4x106.25Gb/s PAM4

Case Temperature(℃)

0~70°C(32 to 158°F)

Protocol

400G Ethernet Compliant

Applications

Product Highlights

Optimal Connector Shells Ensure More Stable and Reliable Solutions

Finned top and flat top connector shells are different in size and application solutions, delivering deep insights for your business.

800G OSFP optical modules integrated in a heat sink are applicable for Spectrum-4 Ethernet switches. Its top heat sink provides the necessary thermal management when processing massive data.

Flat Top module's height is 9.5 mm without heat sinks, relying on the heatsinks on the NIC ports to assist the module in cooling. 400G OSFP form factor optical modules are used in CX7 NICs.

Compare Items

	OSFP-400G-DR4	QDD-400G-XDR4	QDD-400G-DR4
Form Factor	OSFP	QSFP-DD	QSFP-DD
Center Wavelength	1310nm	1310nm	1310nm
Connector	MPO/MTP-12 APC	MTP/MPO-12 APC	MPO/MTP-12 APC
Cable Distance	100m	2km	500m
Electrical Modulation	8x53.125Gb/s PAM4(400GAUI-8)	8x53.125Gb/s PAM4(400GAUI-8)	8x53.125Gb/s PAM4(400GAUI-8)
Optical Modulation	4x106.25Gbps PAM4	4x106.25Gbps PAM4	4x106.25Gbps PAM4
Modulation Diagram
Power Consumption	≤10W	≤10.5W	≤10.5W
Transmitter Type	EML	EML	EML
Protocols	OSFP MSA, CMIS 4.0, IEEE 802.3bs	QSFP-DD MSA, CMIS Rev4.1, OIF 56G PAM4, 100G Lambda MSA, IEEE 802.3bs	QSFP-DD MSA, CMIS Rev4.1, OIF 56G PAM4, 100G Lambda MSA, IEEE 802.3bs
Application	Data Center, HPC, enterprise core, 400G to 400G ethernet, 800G to 2x400G Breakout, 400G to 4x100G Breakout	Data Center, HPC, enterprise core, 400G to 400G ethernet, 800G to 2x400G Breakout, 400G to 4x100G Breakout	Data Center, HPC, enterprise core, 400G to 400G ethernet, 800G to 2x400G Breakout, 400G to 4x100G Breakout

Questions & Answers

Ask a Question

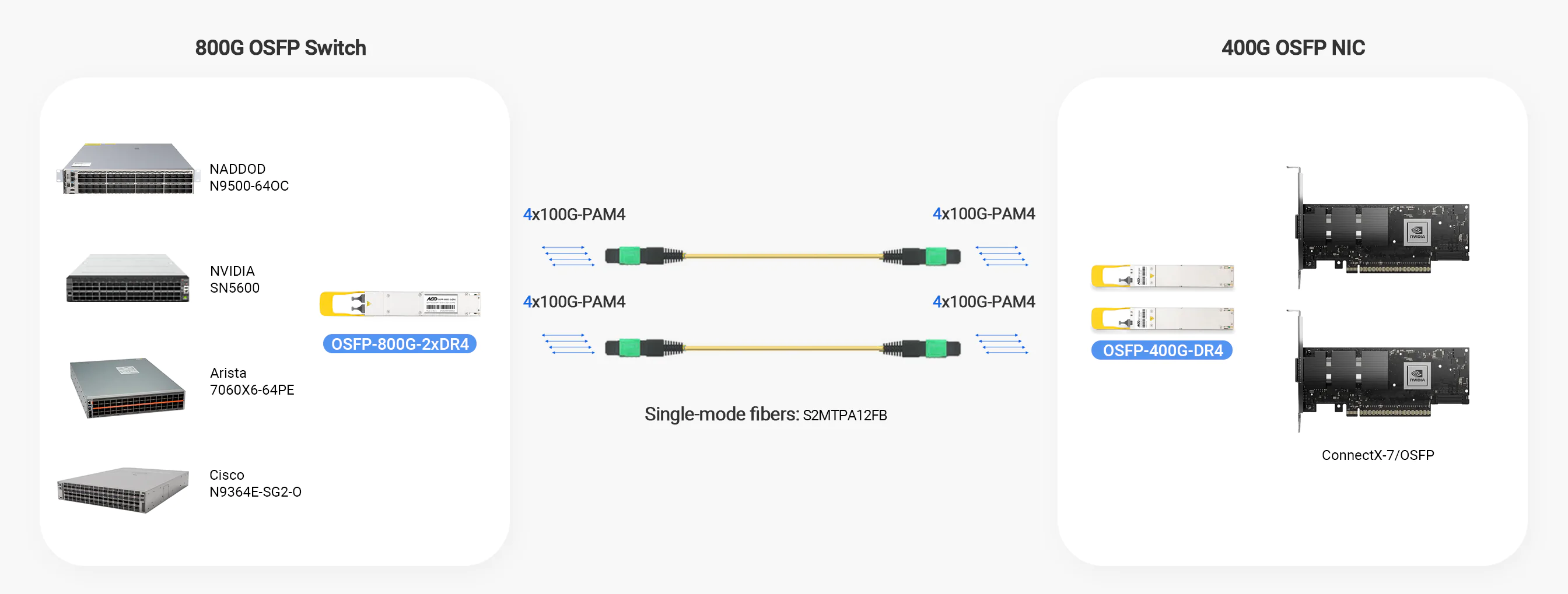

Can a 400G OSFP DR4 be interconnected with an 800G 2xDR4?

Yes, it is possible. The 800G dual-port 2xDR4 can be connected to two 400G DR4 optical modules using two single-mode MPO-12/APC jumpers.

Can QSFP-DD 400G DR4 be interconnected with OSFP 400G DR4?

Even though QSFP-DD and OSFP have different standards, QDD-400G-DR4 and OSFP-400G-DR4 are still interconnected and they have the same standards on the optical side; this is one way to interconnect NVIDIA CX7 OSFP-packaged 400G NICs with 400G QSFPDD switches.

Can QSFP-DD ports use modules in OSFP form factor, such as OSFP-400G-DR4?

OSFP and QSFP-DD are two completely different form factors, so OSFP optical modules cannot be used in OSFP ports.
