What is the modulation method of the 800G Twin-Port NDR 2xSR4 optical module?

8-channels of 100G-PAM4 electrical modulation, Two ports of 4-channel 100G-PAM4 optical modulation.

What is the transmission distance of the 800G Twin-Port NDR 2xSR4 optical module?

With the OM3 patch cable, the transmission distance is 30m, with the OM4 patch cable, the transmission distance is up to 50m.

What are the heat dissipation methods of the NDR module?

One is with "Finned Top" and the other is "Flat Top"; Generally speaking, the "Flat Top" module is mainly used on the NIC side, because the thickness of the NIC is limited. The "Finned Top" module has a module top design with heat dissipation fins, which can increase heat dissipation capacity and improve module performance and reliability in high-temperature environments. It is usually used in Quantum-2 and Spectrum-4 air-cooled switches.

800G OSFP SR8 850nm 50m MMF InfiniBand NDR Module for Mellanox(Coherent VCSEL)

Click to open expanded view

Global Local Service

Lifetime Technical Support

NVIDIA/Mellanox MMA4Z00-NS Coherent VCSEL Compatible 800G 2xSR4/SR8 OSFP PAM4 850nm 50m DOM Two MPO-12/APC InfiniBand NDR Transceiver Module for MMF (Finned Top)

Name: NVIDIA/Mellanox MMA4Z00-NS Coherent VCSEL Compatible 800G 2xSR4/SR8 OSFP PAM4 850nm 50m DOM Two MPO-12/APC InfiniBand NDR Transceiver Module for MMF (Finned Top)
Brand: Naddod
SKU: 102077
Price: 999.00 USD
Availability: InStock
Rating: 5.0 (18 reviews)

#102077

Model: OSFP-800G-2xSR4H

Sold: 23121

In Stock: 892

$ 999.00

Transceiver Types:

800G SR8｜MMA4Z00-NS

800G SR8｜MMA4Z00-NS-FLT

800G FR8｜MMS4X50-NM

800G DR8｜MMS4X00-NM

800G DR8｜MMS4X00-NS

400G SR4｜MMA4Z00-NS400

400G DR4｜MMS4X00-NS400

400G SR4｜MMA1Z00-NS400

800G SR8｜MMA4Z00-NS

800G SR8｜MMA4Z00-NS-FLT

800G FR8｜MMS4X50-NM

800G DR8｜MMS4X00-NM

800G DR8｜MMS4X00-NS

400G SR4｜MMA4Z00-NS400

400G DR4｜MMS4X00-NS400

400G SR4｜MMA1Z00-NS400

Brand:

NADDOD (InfiniBand)

Chip Solutions:

Broadcom VCSEL

Coherent VCSEL

Broadcom VCSEL

Coherent VCSEL

Item Spotlights

100% verified by the original, perfectly compatible with NVIDIA QM9700/9790 devices.
Tested for compatibility with multiple firmware versions, compliant with IBTA Industrial BER standards.
Free test environment and samples are available to experience the high-quality product performance.
Complies with OSFP MSA, CMIS 4.0, and RoHS protocols, providing a reliable and sustainable solution.
30-Day Free Return, 1-Year Free Replacement, 3-Year Warranty, Lifetime After-sales Technical Support.

NVIDIA/Mellanox MMA4Z00-NS Coherent VCSEL Compatible 800G 2xSR4/SR8 OSFP PAM4 850nm 50m DOM Two MPO-12/APC InfiniBand NDR Transceiver Module for MMF (Finned Top)

Free Worldwide Shipping on Orders over $ 99

Specifications

Applications

Product Highlights

Questions & Answers

Customer Reviews

Resources

Specifications

Applications

Product Highlights

Questions & Answers

Customer Reviews

Resources

Description

NVIDIA/Mellanox® MMA4Z00-NS Coherent VCSEL Compatible 800G 2xSR4/SR8 InfiniBand NDR Optical Transceiver Module(Twin-port OSFP, 850nm, 30m (OM3) /50m (OM4), Two MPO-12/APC, DOM, for MMF, Finned Top)

NADDOD OSFP-800G-2xSR4H is an InfiniBand and Ethernet 800Gb/s 2x400Gb/s Twin-port OSFP, SR8 multimode, parallel, 8-channel transceiver using two, 4-channel MPO-12/APC optical connectors at 400Gb/s each.The Twin-port SR8 transceiver is a key innovation with two internal transceiver engines enabling 64-ports of 400Gb/s in a 32-OSFP cage Quantum-2 switch. Spectrum-4 switches have 32 or 64 cages and enable 64-128 400G ports.

Specifications

Form Factor

Twin-port OSFP

Distance

30m (OM3) /50m (OM4)

Wavelength

850nm

Connector

Two MPO-12/APC

Power Consumption

≤16W

Transmitter

VCSEL

Receiver

Media

MMF

Modulation（electrical ）

8x106.25Gb/s PAM4

Modulation（Optical ）

Two ports 4x106.25Gb/s PAM4

Case Temperature(℃)

0~70°C(32 to 158°F)

Protocol

IB NDR,800G Ethernet Compliant

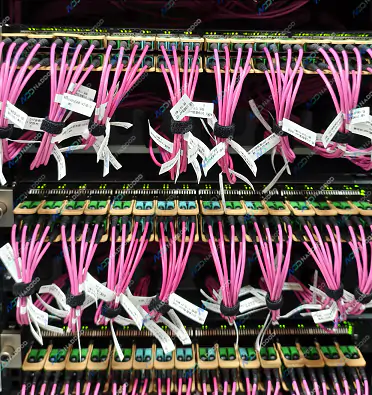

Applications

Product Highlights

Different Heat Sink Designs Upgrade the Level of Performance

Mastering the differences between flat top and finned top, ensuring high performance and stable data transmission.

Finned Top modules feature a top design equipped with heat dissipation fins. The integrated top heatsink enhances cooling efficiency when handling massive data. 800G OSFP optical modules integrated in a heat sink are applicable for Quantum-2 InfiniBand switches and Spectrum-4 Ethernet switches.

Flat Top module's height is 9.5 mm without heat sinks, relying on the heatsinks on the NIC ports to assist the module in cooling, which fits into compact or constrained spaces without interference. 400G OSFP form factor optical modules are used in CX7 HCA.

Why NADDOD

Module Availability

Worry-Free - Rigorous authentic testing!
Multi-version Device Compatibility

Multi-Version - Easy adaptation for each module!
High-Performance

Actual Test Data-Better results intuitively!

Our Approach

Test scene

NADDOD stringently selects a series of items in a professional testing environment to ensure the perfect blend of product performance and reliability. Including hardware compatibility (plugging, unplugging, rebooting), software compatibility (connectivity, parameters) and performance testing (DDM, BER, stability).

Test result

QM9700 Version: 3.11.3002

MCX75310AAS-NEAT Version: 28.40.1000

Multi-Version

Switch Side Testing
NIC Side Testing

Multi-Version Testing

No matter the device version, the optical modules are rigorously tested to ensure seamless integration with various hardware and software versions.
Connectivity

Switch Side Testing
NIC Side Testing

Connectivity Testing

The module can connect to both devices normally, and the device port status is up.
BER

Switch Side Testing
NIC Side Testing

BER Testing

Tests REAL-TIME BER to ensure the accuracy of data transmission under high load conditions.

Questions & Answers

Ask a Question

Can I use only one port for the 800G Twin-Port NDR 2xSR4 optical module?

Yes, if only one of the ports is used, the rate is 400G.

What kind of optical fiber do I need to use with the 800G Twin-Port NDR 2xSR4 optical module?

When the connection rate of both devices is 2x400G-2x400G, it is paired with two OM4 MPO-12/APC patch cords, and the corresponding NADDOD model is M4MPOA12FB . When the connection rate of both devices is 2x400G-4x200G, it is paired with two multimode OM4 MPO-2xMPO-4/APC patch cords, and the corresponding NADDOD model is M4MPOA2x4F.

Why is the polished type of multimode patch cable used in the NDR module MPO/APC (Angled Polished Connector)?

100G-PAM4 optoelectronic devices are very sensitive to reflections occurring within the fiber, about 10% of the light is reflected back to the transmitter as it passes through the optical connector, distorting the data signal, APC's optical connector deflects this reflected light.

Customer Reviews

5.0

3 Reviews

5 Star
100%
4 Star
0%
3 Star
0%
2 Star
0%
1 Star
0%

All Reviews (3)

r***6
Verified Purchase
r***6
Verified Purchase
5.0
I have used this transceiver on my QM9700 switch, and they are functioning well. In the near future, I may purchase more.
Helpful (8)Comments
u***s
Verified Purchase
u***s
Verified Purchase
5.0
I have received the test sample and have started using it. The module is working as expected, and there are currently no issues. It performs well and appears to be reliable.
Helpful (6)Comments
j***a
Verified Purchase
j***a
Verified Purchase
5.0
I had inquired with several suppliers about the MMA4Z00-NS optical module, but their delivery times were too long and couldn't meet our testing project requirements. Finally, I placed an order with NADDOD, and now I have received the shipment.
Helpful (3)Comments
