Generic Compatible 800G OSFP 2xFR4 1310nm 2km PAM4 DDM Dual LC Duplex SMF Optical Transceiver Module

Click to open expanded view

Generic Compatible 800G OSFP 2xFR4 1310nm 2km PAM4 DDM Dual LC Duplex SMF Optical Transceiver Module
Global Local Service
Lifetime Technical Support

Generic Compatible 800G OSFP 2xFR4 1310nm 2km PAM4 DDM Dual LC Duplex SMF Optical Transceiver Module

#32800
#32800
Model: OSFP-800G-2xFR4
  Sold:  17
In Stock:  4
$ 1699.00
Transceiver Types:
OSFP-800G-2xSR4
OSFP-800G-2xFR4
OSFP-800G-2xDR4
OSFP-800G-2xXDR4
OSFP-800G-2xSR4
OSFP-800G-2xFR4
OSFP-800G-2xDR4
OSFP-800G-2xXDR4
Brand:
Generic
Arista
Generic
Arista

Item Spotlights

  • Max Power Consumption ≤16W.
  • Provide Professional Compatibility and Parameter Test Reports.
  • Compliant with Hot Pluggable OSFP MSA, IEEE802.3ck Standard.
  • Class1/1M Standard Product, Compliant with RoHS Environmental Protection Standards (Lead-Free).
  • DDM(Digital Diagnostic Monitoring) Supported.
  • 30-Day Free Return, 3-Year Free Replacement, 5-Year Warranty, Lifetime After-sales Technical Support.
Generic Compatible 800G OSFP 2xFR4 1310nm 2km PAM4 DDM Dual LC Duplex SMF Optical Transceiver Module
Generic Compatible 800G OSFP 2xFR4 1310nm 2km PAM4 DDM Dual LC Duplex SMF Optical Transceiver Module
NADDOD
Specifications
Applications
Questions & Answers
Customer Reviews
Resources
Specifications
Applications
Questions & Answers
Customer Reviews
Resources
Description

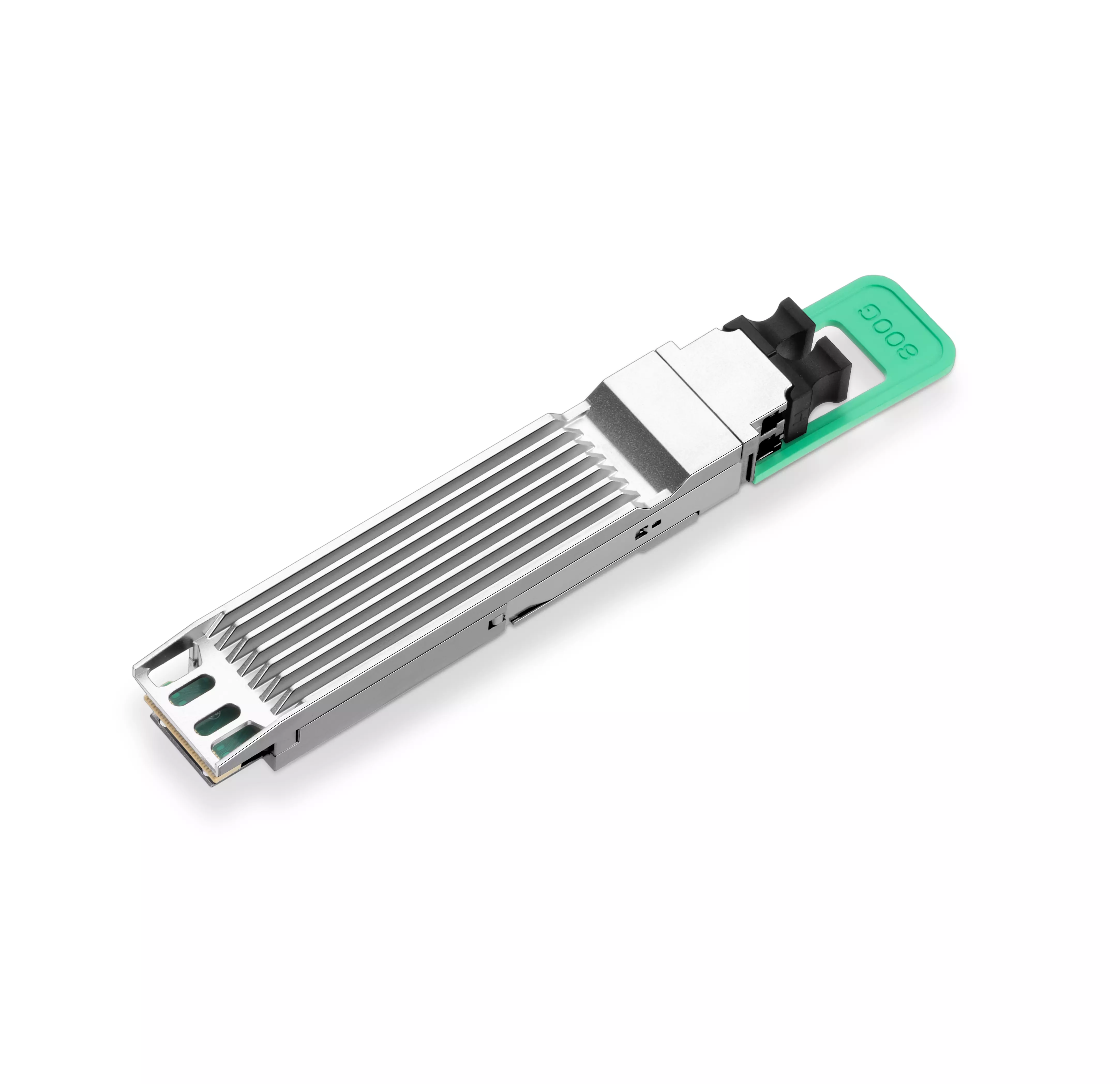

Generic Compatible OSFP-800G-2xFR4 OSFP PAM4 Optical Transceiver Module (SMF, 1310nm, 2km, Dual LC Duplex, DDM)

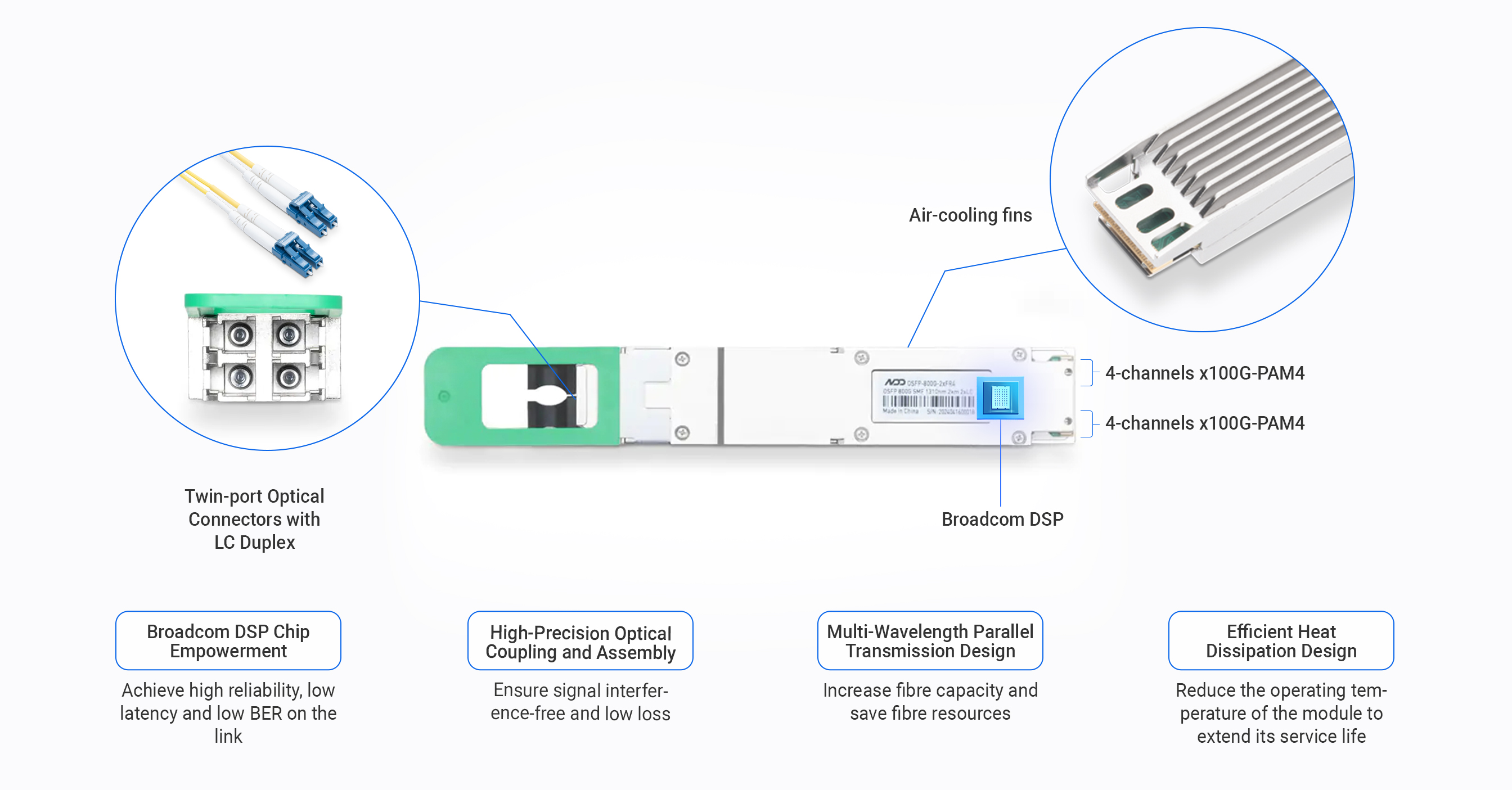

NADDOD OSFP-800G-2xFR4 Optical Transceiver Module is designed for 800GBASE throughput up to 2km over single-mode fiber (SMF) with dual duplex LC connectors. The OSFP-800G-2xFR4 can convert 8-channel 106.25Gb/s electrical data to 8-channel 106.25Gb/s optical signals. Similarly, it optically converts 8-channel 106.25Gb/s optical signals to 8-channel electrical data output on the receiver side. It has been designed to withstand the maximum range of external operating conditions including temperature, humidity and EMI. The OSFP-800G-2xFR4 Optical Transceiver is a high performance, cost effective module for optical data communication applications supporting 800G Ethernet.

Specifications
Form Factor
OSFP
Distance
2km
Wavelength
1310nm
Connector
Dual Duplex LC
Power Consumption
≤16W
Transmitter
EML
Receiver
PIN
Media
SMF
Modulation（electrical ）
8x106.25Gb/s PAM4
Modulation（Optical ）
8x106.25Gb/s PAM4
Case Temperature(℃)
0 to 70°C (32 to 158°F)
Protocol
800G Ethernet Compliant

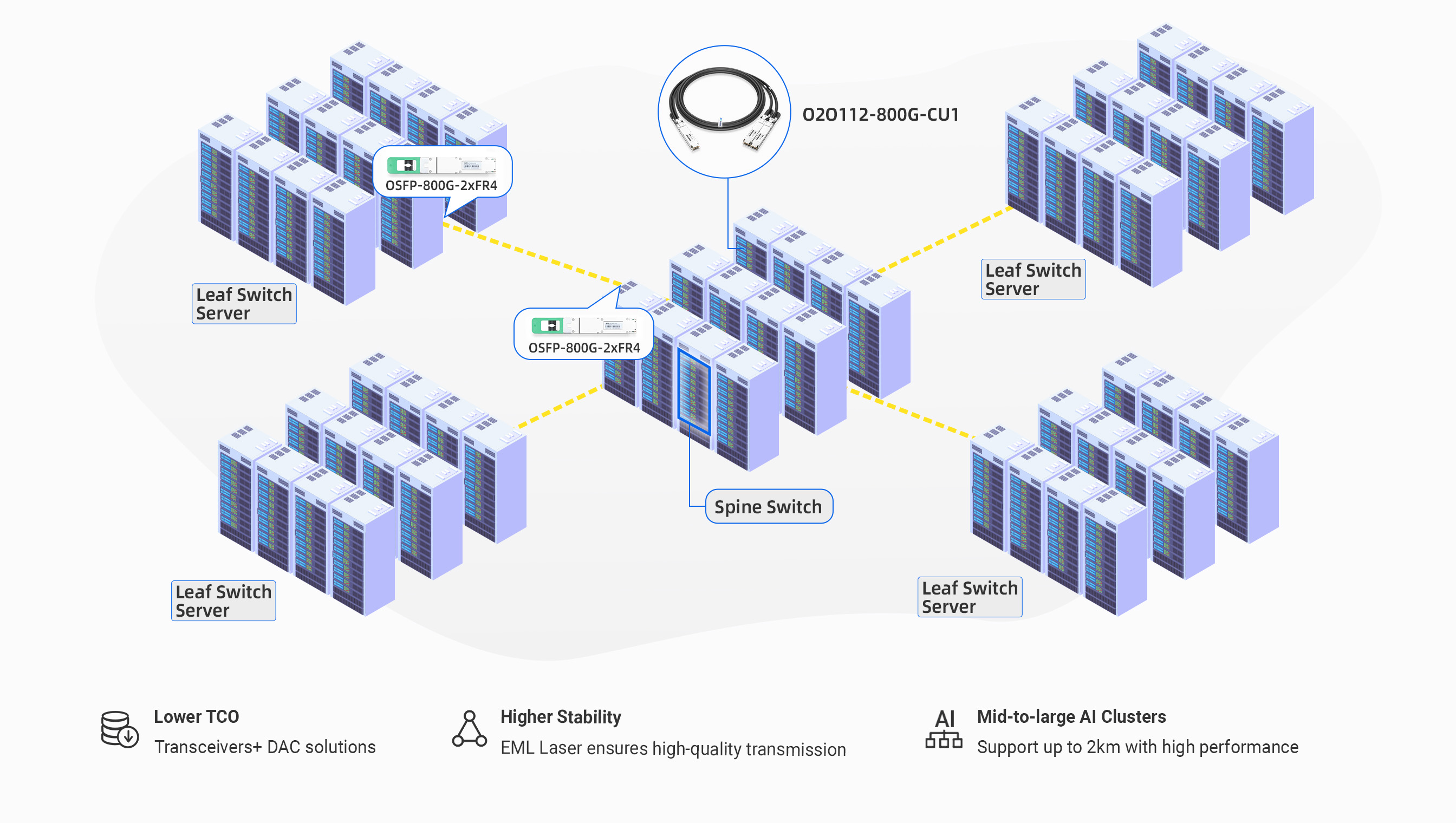

Connectivity Solutions
Scalability and flexibility of networks

The 800G high-performance switches combined with the processing power of 800G optical modules combine to enable seamless connectivity and efficient data exchange between devices and provide an optimal Ethernet solution for AI/ML workloads, dramatically improving AI cluster performance and lowering total cost of ownership.

NVIDIA SN5600,NVIDIA SN5600,NVIDIA SN5600,NVIDIA SN5600
Applications
View More
Questions & Answers
Ask a Question
Q:
Can I use only one port of the 800G Dual Port 2xFR4 Optical Module?
A:
Yes, the rate is 400G if only one of the ports is used.
Q:
Can I interconnect 800G OSFP 2xXDR4 and 800G OSFP 2xFR4 which are both 2km modules?
A:
No. 800G OSFP 2xXDR4 is a dual MPO interface and 800G OSFP 2xFR4 is a dual LC interface and cannot be interconnected.
Q:
Can this module be connected to 400G modules?
A:
Yes, this OSFP-800G-2xFR4 optical module can be connected to two 400G FR4 optical modules via two single-mode fiber patch cables.
View More
Customer Reviews
5.0
1 Reviews
  • 5 Star
    100%
  • 4 Star
    0%
  • 3 Star
    0%
  • 2 Star
    0%
  • 1 Star
    0%
All Reviews (1)
  • Verified Purchase
    Verified Purchase
    5.0
    Installation and usage of FR4 modules are very convenient. They can be easily matched with our existing single-mode patch cords without the need to purchase additional accessory products.
    Helpful (2)Comments
Resources
OSFP-800G-2xFR4 Datasheet
