Provides 48x 10G ports and 8x 100G ports, flexible 1G/10G/40G/100G interface speeds, all ports support L2/L3 full wire speed forwarding
-->
Item Spotlights

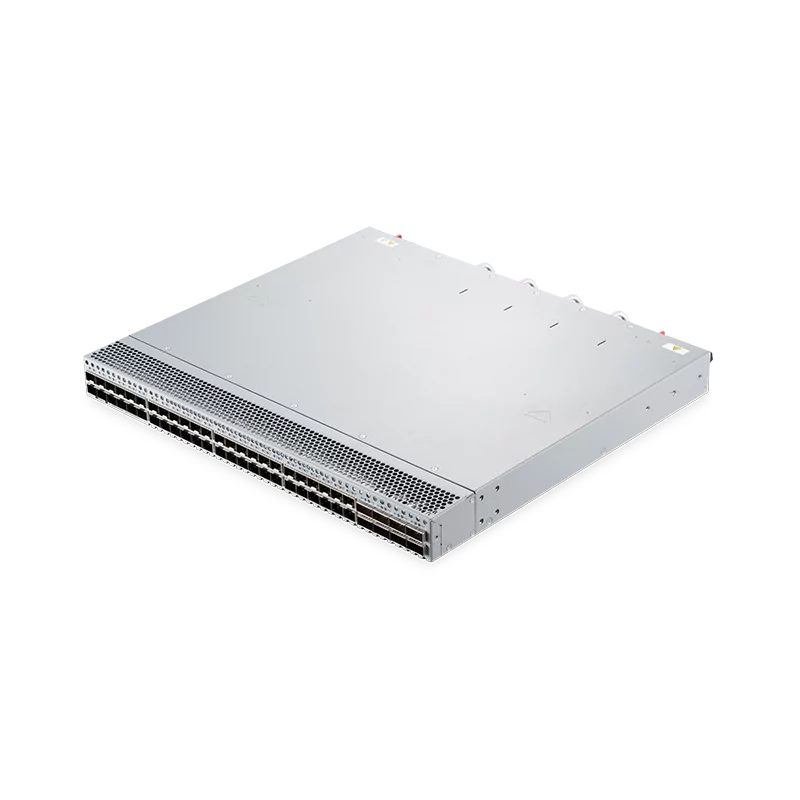

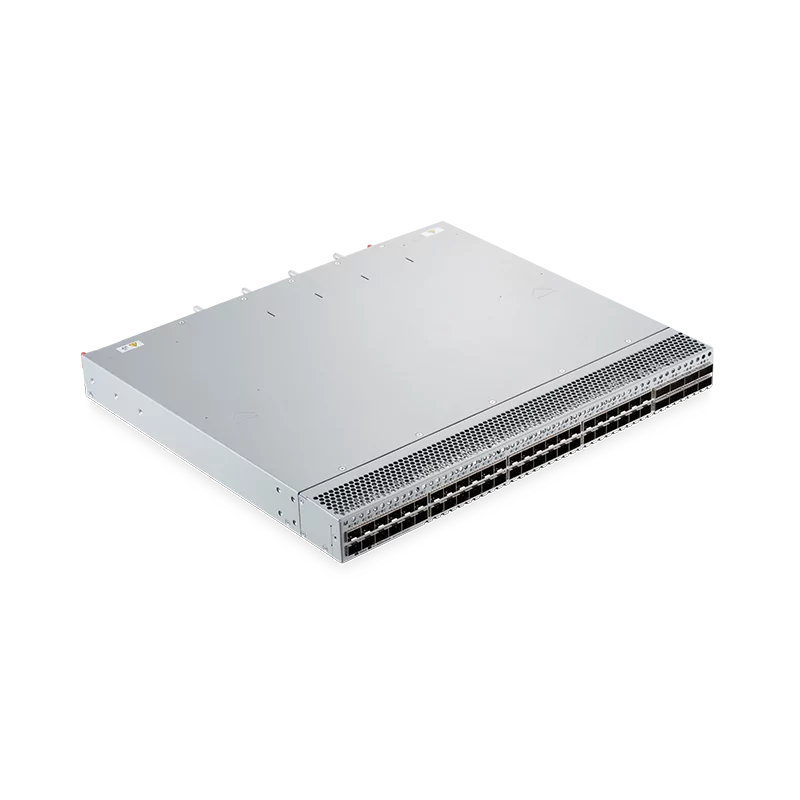

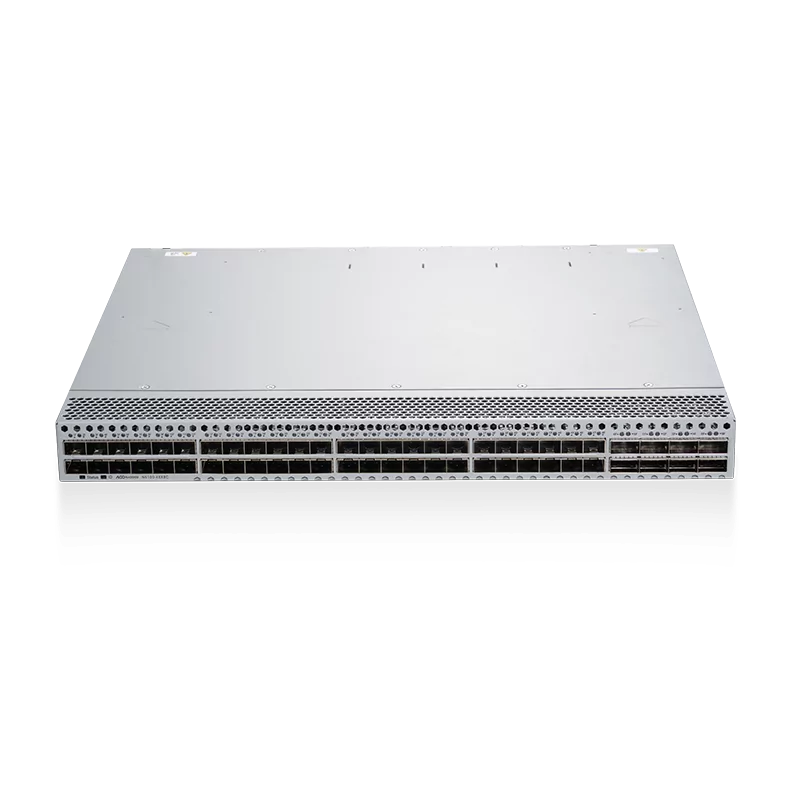

N6100-48X8C, 48-port Ethernet L3 Switch, 48x 10Gb SFP+, with 8x 100Gb QSFP28 ports, supporting M-LAG, PFC/ECN, RoCE
N6100-48X8C is a new generation of 10GbE cloud center network switching equipment from NDD for cloud center networks, providing up to 48x 10G ports and 8x 40/100G QSFP28 ports with L2/L3 full wire speed forwarding. Equipped with dual modular power supplies and 4+1 hot-swappable redundant fans. The switch supports network flow control technologies such as PFC/ECN to build an end-to-end, lossless, low-latency forwarding RDMA (Remote Direct Memory Access) base bearer network. M-LAG can be supported, enabling link aggregation among multiple devices, providing device-level link assurance and forming a dual-active system. It is positioned at the Leaf layer of traditional cloud center and SDN cloud center scenarios, and can be used as a 10G TOR switch for cloud center, flexibly adapted to scenarios such as high-performance computing, artificial intelligence, SDN cloud network integration, and also adapted to scenarios such as distributed storage and multi-site central network, and with its rich central network features, it can fully meet the high performance, high availability and high quality network requirements of the new generation cloud center network. The combination of network virtualization and RoCE enables a total solution for large high-performance data centers.

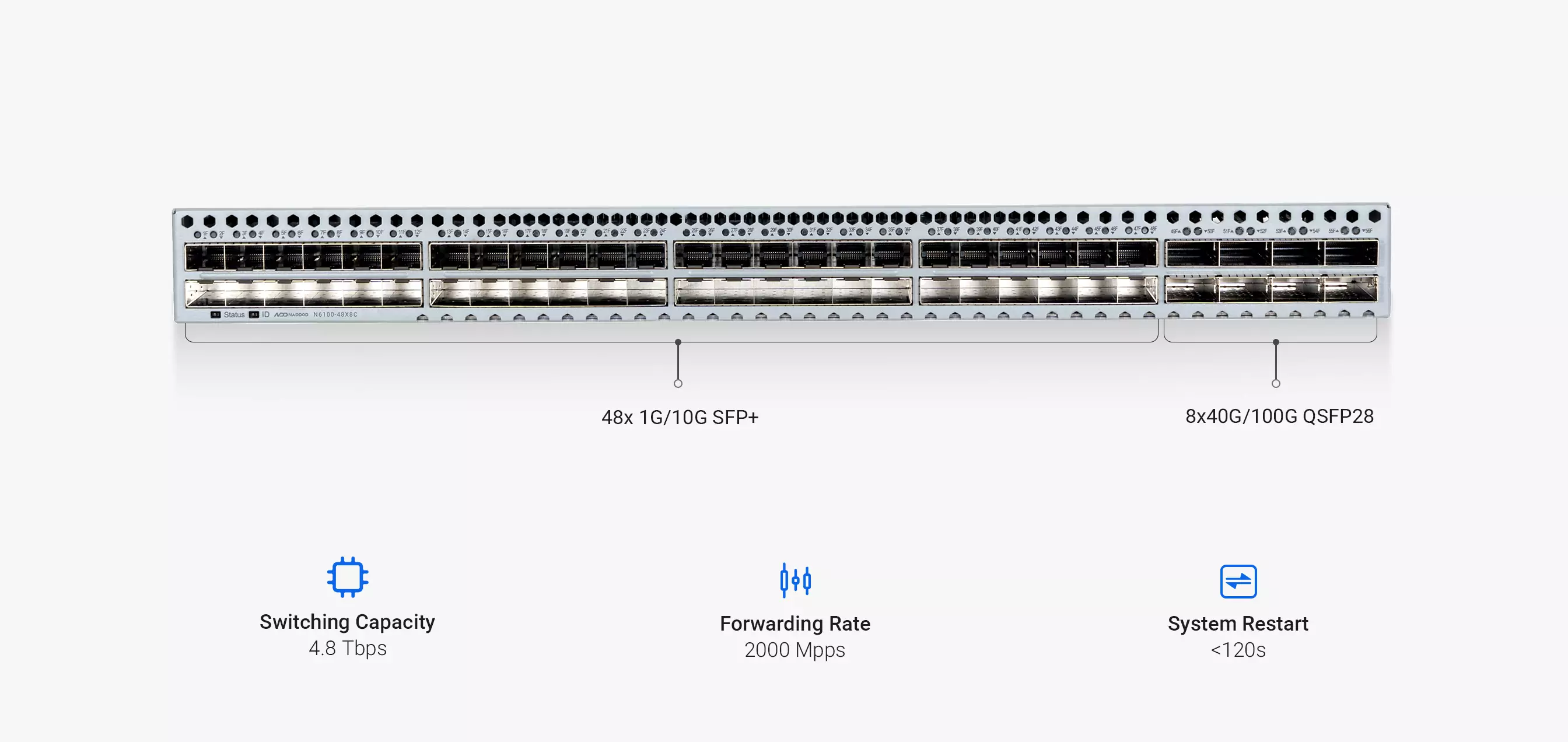

Provides 48x 10G ports and 8x 100G ports, flexible 1G/10G/40G/100G interface speeds, all ports support L2/L3 full wire speed forwarding
Non-blocking CLOS architecture data center network for high performance, high availability and resilient network requirements

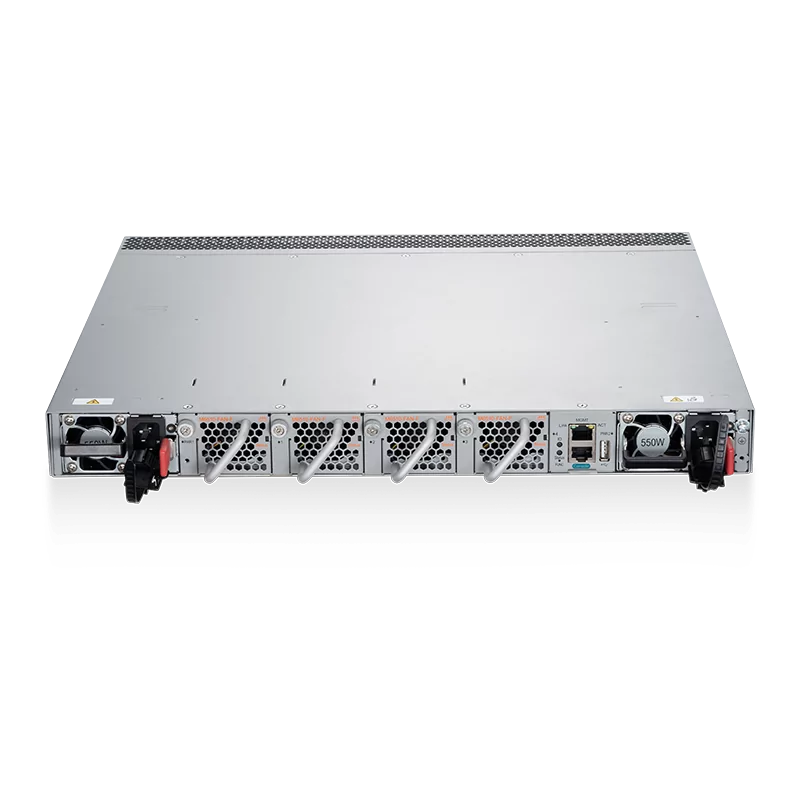

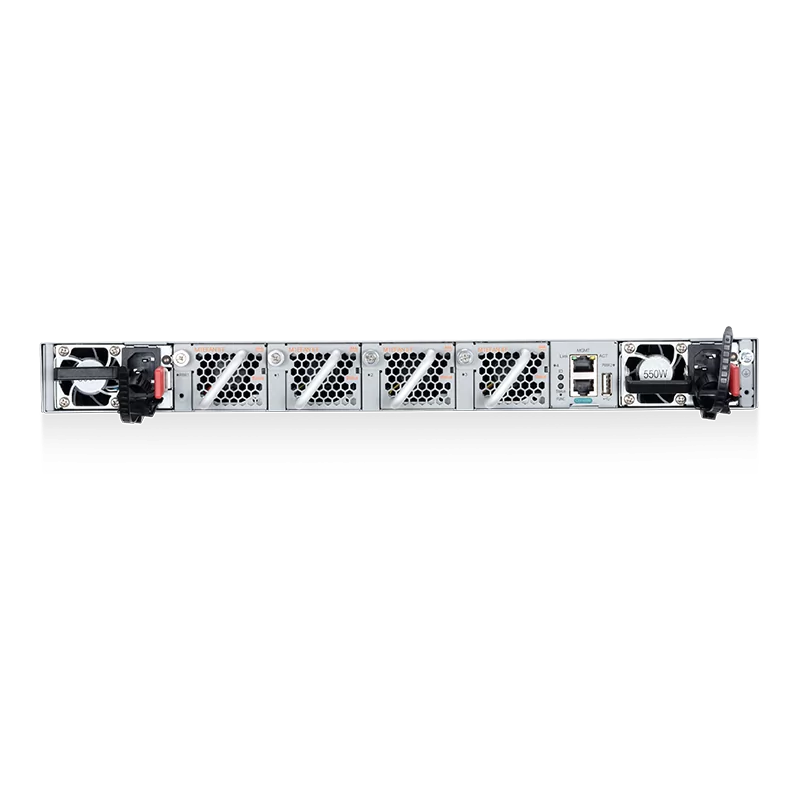

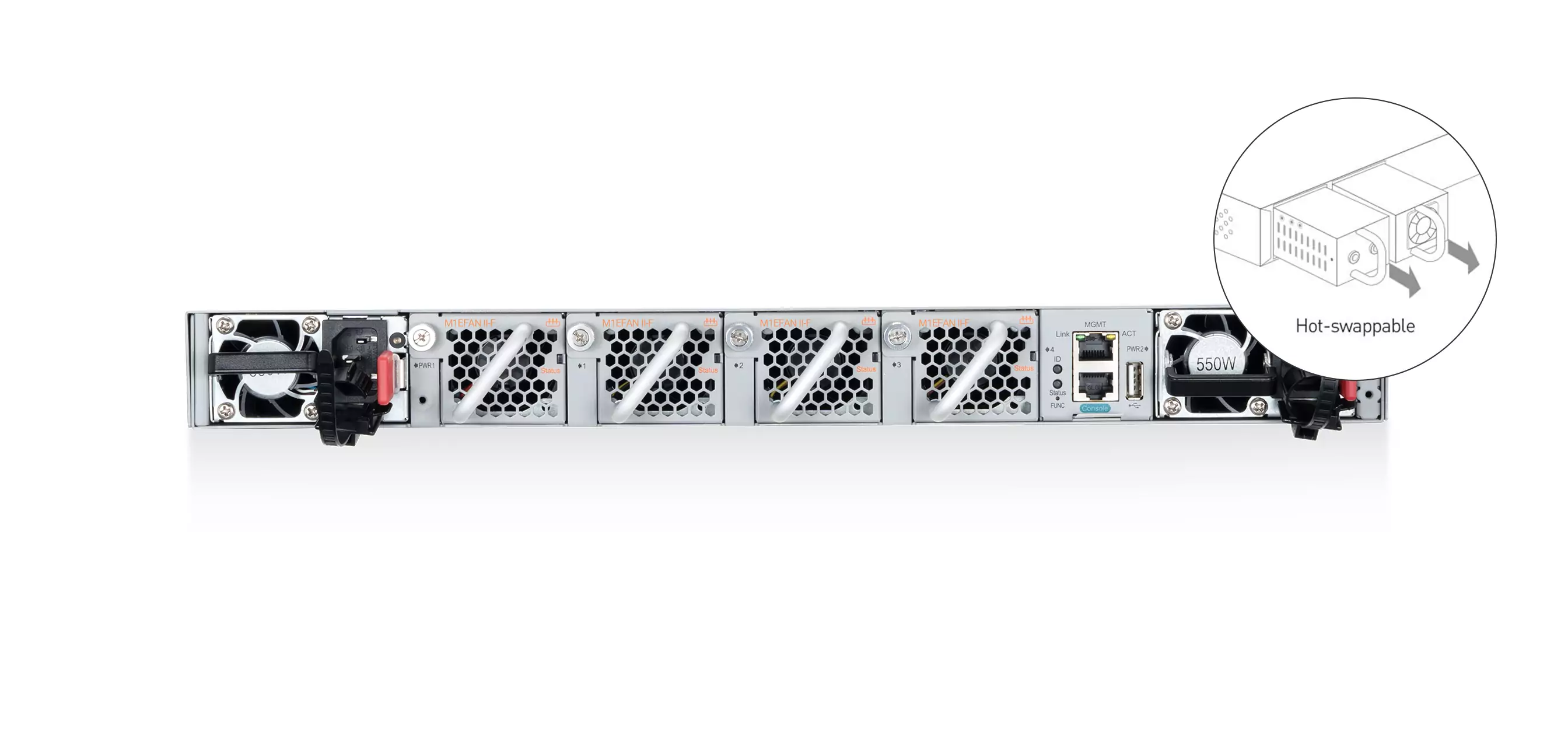

1+1 power supply redundancy and 4+1 samrt fans with automatic speed adjustment, support for over-current, over-voltage and over-heat protection, and non-intermittent power supply for terminal equipment greatly improve the stability of the network.
Support VXLAN, allowing users to expand the network architecture and flexibility to a greater extent, solving the problem of insufficient number of VLANs in the traditional data center network and the difficulty of scale expansion
N6100-48X8C | N6300-32C | N6300-48Y8C | N6400H | |
---|---|---|---|---|

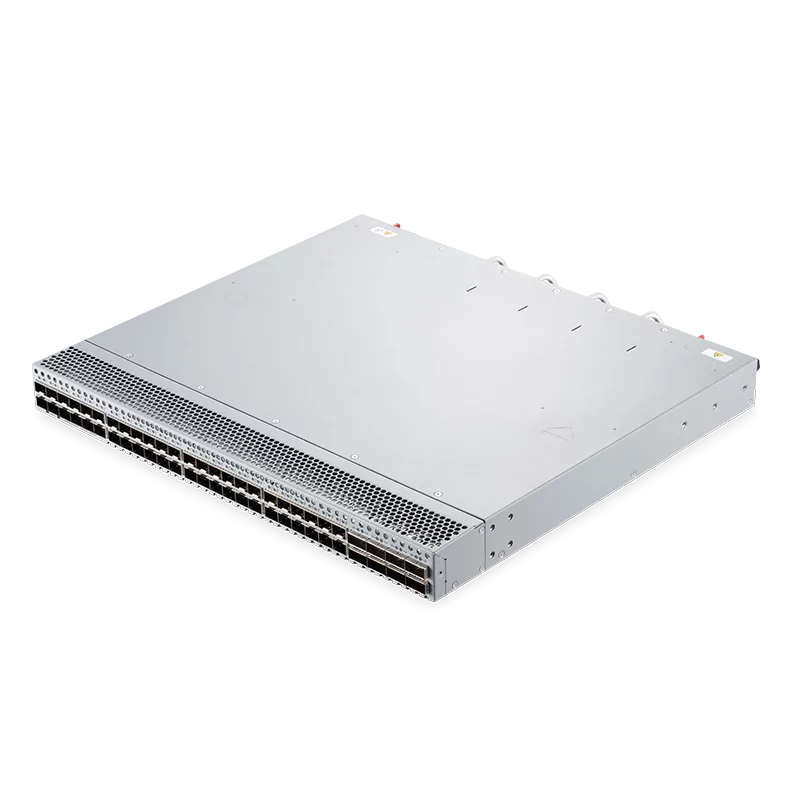

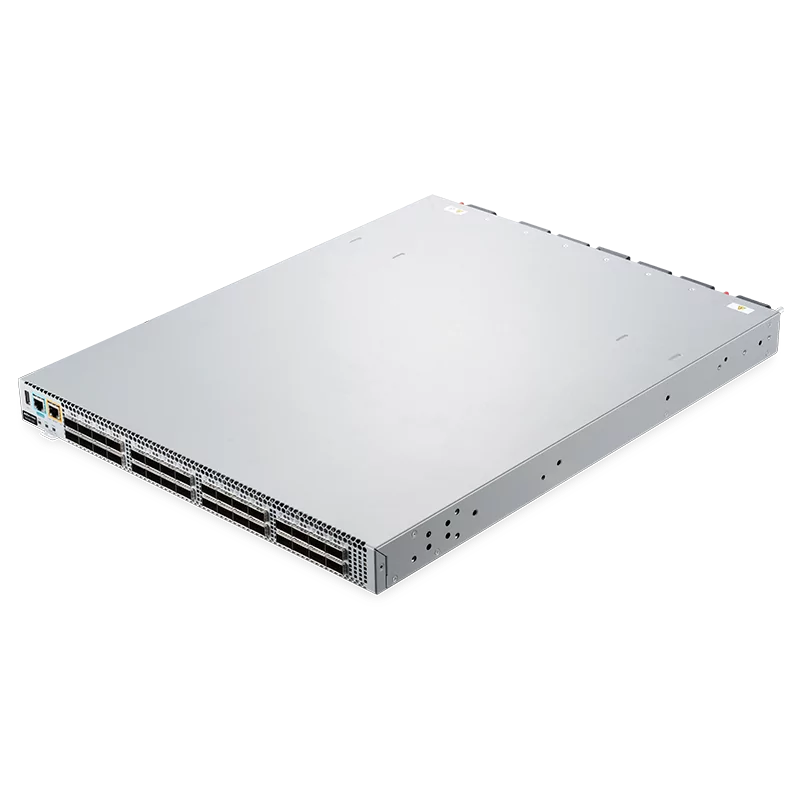

Description | N6100-48X8C, 48-Port Ethernet L3 Switch, 48x 10Gb SFP+ , with 8x 40Gb/100Gb QSFP28, Support MLAG, Support VXLAN, Support RoCE | N6300-32C, 32-Port Ethernet L3 Data Center Switch, 32x 40Gb/100Gb QSFP28, Support MLAG, Broadcom Chip | N6300-48Y8C, 48-Port Ethernet L3 Data Center Switch, 48x 10/25Gb SFP28, with 8x 40/100Gb QSFP28, Support MLAG, Broadcom Chip | N6400H, 4-Slot 4U Ethernet L3 Data Center Switch Unloaded, 128x 40/100Gb QSFP28 | 112x 10Gb SFP+ ,with 32x 40/100Gb QSFP28, Support MLAG, Broadcom Chip, Support RoCE |
SFP Ports | 48x 1G/10G SFP+ | 8x 40G/100G QSFP28 | 32x 40G/100G QSFP28 | 48x 10/25G SFP28 | 8x 40/100G QSFP28 | 128x 40G/100G QSFP28 |
VXLAN | | | | |
NVGRE | - | | | - |
GENEVE | - | | | - |
EVPN | | | | |
PFC | | | | |
ECN | | | | |
MLAG | | | | |
VARP | - | - | - | - |
VRRP | - | - | - | - |
Smartlink | | | | |
NAT | - | - | - | - |
OSPFv2/v3 | | | | |
BGP4/BGP4+ | | | | |
SFlow | | | | |
Open API: Neutron, OVSDB, Python | | | | |
